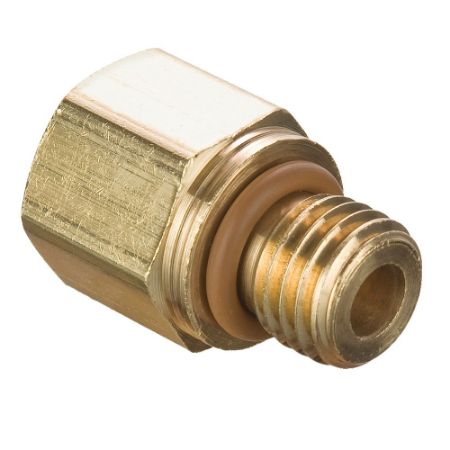

ISO Port Adapters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's ISO Port Adapters are ideal in systems with high pressure and cycling providing reliable, long-term sealing. ISO port adapters meet dimensional requirements of ISO 6149-3 and SAE 2244-3. A Fluorocarbon O-ring is standard on all ISO port adapters so no thread sealant is needed, reducing maintenance and component replacement costs as a result of contaminating and damaging of components due to the sealant.
Markets:
• Industrial
• Construction
• Mobile
• Factory/process automation
Features/Benefit:
• All brass construction
• No thread sealant
• Fluorocarbon O-ring reduces maintenance and replacement costs as a result of contamination and damage to components due to sealant
• Long term sealing
• Improves assembly time
Applications:
• Air lines
• Water lines
• Cooling lines
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 1 Style | Connection 2 Thread Size (inch) | Style | Connection 1 Tube O.D. (inch) | Tube Material | Minimum Operating Temperature | Specifications Met | Maximum Operating Pressure | O-Ring Material | Body Material | Division | Maximum Operating Temperature | Minimum Operating Pressure | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/8F3HG-B | 17 in stock | 1369 in stock | $3.01/each | EA | Male | Male | 1/8 | Metric Adapter | 1/8 | Copper, Brass, Iron Pipe | -40 °F | na | 69 bar | Fluorocarbon | Brass | Fluid System Connectors Division | 150 °C | 1000 psi | ||
| 149F-10-MI27 | Backordered | Backordered | $45.37/each | EA | 90° Elbow | Male Flare | M27x2.0 | Flare to Metric | 5/8 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 650 psi | Fluorocarbon | Brass | Fluid System Connectors Division | 250 °F | -53 psi | 0.27594424460431655 lb | |
| 159F-10-MI27 | Backordered | Backordered | $48.18/each | EA | 45° Elbow | Male Flare | M27x2.0 | Flare to Metric | 5/8 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 650 psi | Brass | Fluid System Connectors Division | 250 °F | -53 psi | 0.27594424460431655 lb | ||
| 169HB-10-MI27 | Backordered | 27 in stock | $63.45/each | EA | 90° Elbow | Beaded Hose Barb | M27x2.0 | Beaded Hose Barb to Metric | 5/8 | Copper, Brass, J844 Type A & B Nylon Tubing | -40 °F | ISO 6149-3, SAE 2244-3 | 150 psi | Brass | Fluid System Connectors Division | -40 psi | 0.27594424460431655 lb | |||
| 179HB-16-MI27 | Backordered | Backordered | $59.30/each | EA | 45° Elbow | Beaded Hose Barb | M27x2.0 | Beaded Hose Barb to Metric | 1 | Copper, Brass, J844 Type A & B Nylon Tubing | -40 °F | ISO 6149-3, SAE 2244-3 | 10 bar | Fluorocarbon | Brass | Fluid System Connectors Division | 71 °C | -40 psi | ||
| 222P-2-MI10 | Backordered | Backordered | $9.76/each | EA | Adapter | Female Pipe | M10x1.0 | Female Pipe to Metric | 1/8 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 68 bar | Brass | Fluid System Connectors Division | 250 °F | -53 psi | 0.27594424460431655 lb | ||
| 222P-2-MI14 | Backordered | Backordered | $14.60/each | EA | Adapter | Female Pipe | M14x1.5 | Female Pipe to Metric | 1/8 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 1000 psi | Fluorocarbon | Brass | Fluid System Connectors Division | 121 °C | -53 psi | ||
| 222P-4-MI12 | Backordered | 4 in stock | $21.07/each | EA | Adapter | Female Pipe | M12x1.5 | Female Pipe to Metric | 1/4 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 68 bar | Brass | Fluid System Connectors Division | 250 °F | -53 psi | 0.27594424460431655 lb | ||
| 222P-4-MI14 | Backordered | Backordered | $24.57/each | EA | Adapter | Female Pipe | M14x1.5 | Female Pipe to Metric | 1/4 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 1000 psi | Fluorocarbon | Brass | Fluid System Connectors Division | 121 °C | -53 psi | 2.7594424460431655 lb | |
| 222P-6-MI16 | Backordered | Backordered | $16.55/each | EA | Adapter | Female Pipe | M16x1.5 | Female Pipe to Metric | 3/8 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 1000 psi | Brass | Fluid System Connectors Division | 250 °F | -53 psi | 0.27594424460431655 lb | ||
| 222P-6-MI22 | Backordered | 2 Limited Stock | $13.53/each | EA | Adapter | Female Pipe | M22x1.5 | Female Pipe to Metric | 3/8 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 68 bar | Brass | Fluid System Connectors Division | 250 °F | -53 psi | 0.27594424460431655 lb | ||
| 222P-8-MI27 | Backordered | 2 Limited Stock | $29.07/each | EA | Adapter | Female Pipe | M27x2.0 | Female Pipe to Metric | 1/2 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 1000 psi | Brass | Fluid System Connectors Division | 250 °F | -53 psi | 0.27594424460431655 lb | ||
| 48F-12-MI27 | Backordered | Backordered | $26.14/each | EA | Connector | Male Flare | M27x2.0 | Flare to Metric | 3/4 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 37 bar | Brass | Fluid System Connectors Division | 250 °F | -53 psi | 0.27594424460431655 lb | ||
| 48F-8-MI16 | Backordered | Backordered | $16.85/each | EA | Connector | Male Flare | M16x1.5 | Flare to Metric | 1/2 | Copper, Brass, J844 Type A & B Nylon Tubing | -65 °F | ISO 6149-3, SAE 2244-3 | 51 bar | Fluorocarbon | Brass | Fluid System Connectors Division | 121 °C | -53 psi | ||
| 68HB-10-MI27 | 5 in stock | 35 in stock | $31.47/each | EA | Connector | Beaded Hose Barb | M27x2.0 | Beaded Hose Barb to Metric | 5/8 | Copper, Brass, J844 Type A & B Nylon Tubing | -40 °F | ISO 6149-3, SAE 2244-3 | 150 psi | Fluorocarbon | Brass | Fluid System Connectors Division | 71 °C | -40 psi | ||
| 68HB-6-MI12 | Backordered | Backordered | $9.79/each | EA | Connector | Beaded Hose Barb | M12x1.5 | Beaded Hose Barb to Metric | 3/8 | Brass | Fluid System Connectors Division | |||||||||
| 68NTA-4-MI10 | Backordered | Backordered | $17.51/each | EA | Connector | Compression | M10x1.0 | Compression to Metric | 1/4 | Copper, Brass, J844 Type A & B Nylon Tubing | -40 °F | ISO 6149-3, SAE 2244-3 | 10 bar | Fluorocarbon | Brass | Fluid System Connectors Division | 200 °F | -40 psi |
