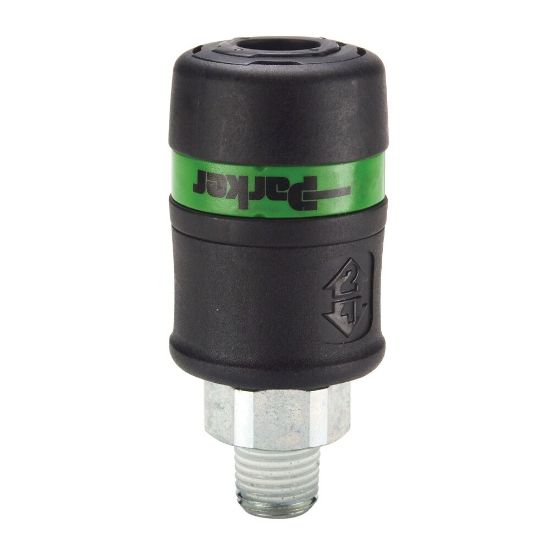

PES-251-4MP - ISO 4414 Industrial & European Interchange, Safety Quick Connect Air Couplers - Tool-Mate Exhaust Series

Parker's pressure venting pneumatic, air quick connect couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	1 Limited Stock

SKU PES-251-4MP

$71.99/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	1/4"-18
Thread Style	Male	Body Size	1/4"
Connection Type	Male, NPTF	Interface Option	Connects with RF style nipples
Dimensional Weight	0.07913669064748201 lb	Sleeve Type	Push-to-Connect
Maximum Operating Pressure	300 psi	Body Material	Polyamide
Minimum Operating Temperature	0 °F	Plating Type	Galvanized Steel Port Ends
Application	Air	Specifications Met	ISO 4414 controlled pressure release
Seal Material	Nitrile	Maximum Operating Temperature	160 °F
Special Option	Exhaust - Venting	Media	Compressed Air
Coupling Half	Coupler	Lock Type	Polyacetate Locking Fingers
Division	Quick Coupling Division	Valve Type	Tubular
