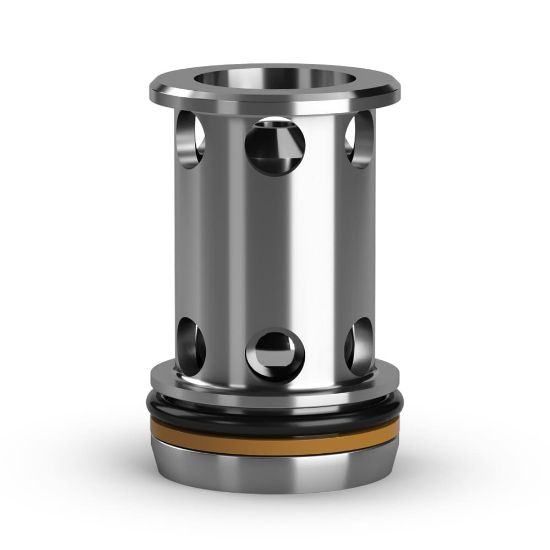

D1A060-0.2V - Insert Check Valves

Parker’s ball and poppet style check valves are cartridges designed to be inserted inside manifolds and can handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi) for circuit optimization and space savings.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU D1A060-0.2V

$122.67/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Cracking Pressure	3 PSI, 0.2 BAR
Flow Rate	38 GAL/MIN, 145 L/MIN	Seal Material	Fluorocarbon
Maximum Inlet Pressure Rating	6000 psi	Connection Size	n/a
Function	Check	Flow Direction	2-1 Checked
Cracking Pressure	3 psi	Minimum Operating Temperature	-26 °C
Cavity Size	2U	Flow Rate	38 Gal/min
Mounting Type	Inside Manifolds	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	ISO 4406 18/16/13	Configuration	Insert
Maximum Operating Pressure	6000 psi	Operating Temperature	-26 to 204 °C
Actuation Type	Pressure Sensing	Weight	0.85 kg
Operation Type	Automatic	Division	Mobile Hydraulic Systems Division Europe
Body Material	n/a	Connection Type	n/a
Leak Rate	3 drops/min	Maximum Flow Rate	145 L/min
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based Hydraulic Fluids
Maximum Operating Temperature	204 °C	Valve Material	Hardened Steel (all operating parts)
