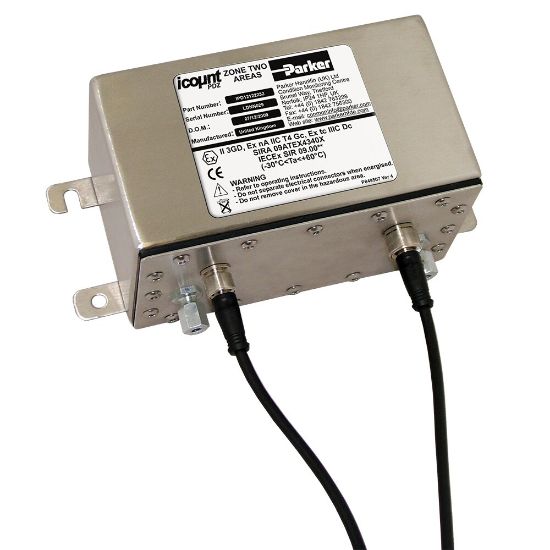

Parker IPDZ12122230 Particle Detector/Counter Brass 06L EO 24° Cone M12, 8-pin Plug Connector Inline Particle Monitor – ICountPD

The Parker iCountPD is a highly compact, permanently mounted laser detection particle size monitor that enables continuous monitoring of contamination levels in hydraulic and fluid circuits.Capable of communicating results in ISO4406 / AS4059 or NAS1638.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 141 days
Partner Available:	Backordered

SKU IPDZ12122230

$6,370.66/each

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Material	Stainless Steel
Options	Moisture Sensor	Port Type	M12, 8-pin plug connector
Signal Output	4 to 20 mA	For Fluid Type	Mineral Oil
Limit Alarm Relay Included	Yes	Indicator Type	No Display on unit
ATEX Specifications Met	ATEX Zone II	Product Type	Condition Monitor
Port Size	06L EO 24° cone	Technology	Filtration
Operating Pressure	30 to 6000 psi	Operating Humidity	5 to 100% (RH)
Seal Material	Fluorocarbon	Accuracy	+/- 1 ISO code
Cycle Time	30 second	Electrical Requirements	9 to 40 VDC
Signal Output	4 to 20 mA	Specifications Met	CE Certification
Brand	Parker	Product Style	Particle Detector/Counter
Length	260 mm	ATEX Specifications Met	ATEX Zone II
Maximum Fluid Temperature	80 °C	Body Material	Brass
Minimum Fluid Temperature	5 °C	Weight	2.6 kg
Port Type	24° Cone EO compression	Operating Temperature	-30 to +60 °C
Materials of Construction	Housing: Stainless Steel	Flow Rate	60 L/min
For Fluid Type	Mineral oils and petroleum based fluids	Height	114 mm
Width	110 mm	Division	Hydraulic & Industrial Process Filtration Division EMEA
Communication Interface	RS232	Division	Hydraulic & Industrial Process Filtration Division EMEA
Industry	Industrial Manufacturing Equipment	Ingress Protection Rating	IP69K
Sensing Method	Laser
