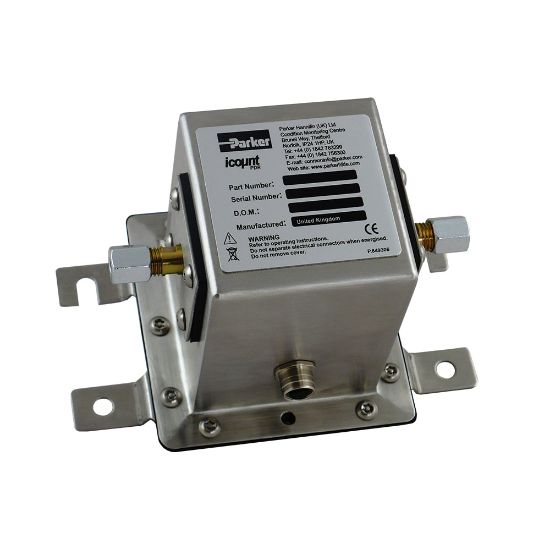

IPDR12112240 - Inline Particle Monitor – iCountPD

The Parker iCountPD is a highly compact, permanently mounted laser detection particle size monitor that enables continuous monitoring of contamination levels in hydraulic and fluid circuits.Capable of communicating results in ISO4406 / AS4059 or NAS1638.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 80 days
Partner Available:	Backordered

SKU IPDR12112240

$4,881.79/each

Products specifications

Attribute name	Attribute value
UOM	EA	Housing Material	Stainless Steel
Options	Moisture Sensor	Signal Output	4 to 20 mA
For Fluid Type	Mineral Oil	ATEX Specifications Met	n/a
Port Type	M12, 12-pin plug connector	Indicator Type	No Display on unit
Limit Alarm Relay Included	No	Operating Temperature	41 to 140 °F
Port Type	24° Cone EO compression	Flow Rate	60 L/min
Materials of Construction	Stainless Steel	Brand	Parker
Specifications Met	CE Certification	Electrical Requirements	9 to 40 VDC
Signal Output	4 to 20 mA	Cycle Time	30 second
Product Style	Particle Detector/Counter	Industry	Industrial Manufacturing Equipment
Communication Interface	RS232	Sensing Method	Laser
Division	Hydraulic & Industrial Process Filtration Division EMEA	Ingress Protection Rating	IP69K
Weight	1.9 kg	Minimum Fluid Temperature	5 °C
Body Material	Brass	Operating Humidity	5 to 100% (RH)
Seal Material	Fluorocarbon	Division	Hydraulic & Industrial Process Filtration Division EMEA
Width	115 mm	Height	114 mm
For Fluid Type	Mineral oils and petroleum based fluids	Length	135 mm
Maximum Fluid Temperature	80 °C	Technology	Filtration
Port Size	06L EO 24° cone	Operating Pressure	30 to 6000 psi
Product Type	Condition Monitor	Accuracy	+/- 1 ISO code
