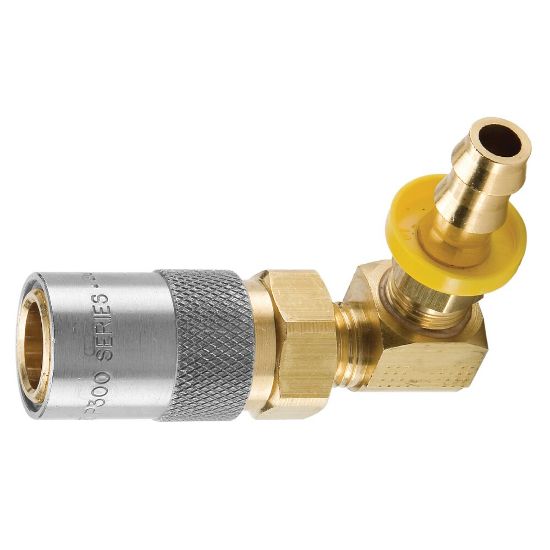

PC318V-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	2 Limited Stock

SKU PC318V-BP

$47.49/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Style	Poppet
Coupling Half	Female Coupler	Body Material	BRASS
Connection Type	Push-Lok hose barb, 90 degree	Connection Thread Size (inch)	na
Connection Hose I.D. (inch)	1/2	Flow Rate	6
Body Size (inch)	3/8	Dimensional Weight	0.12582258992805753 lb
Maximum Operating Pressure	200 psi	Hex Size	0.88 inch
Minimum Operating Temperature	-15 °F	Application	Hydraulics
Seal Material	Silicone - Fluorocarbon	Product Type	Manual Connect
Plating Type	Zinc with clear trivalent chromate on sleeve	Maximum Operating Temperature	400 °F
Division	Quick Coupling Division
