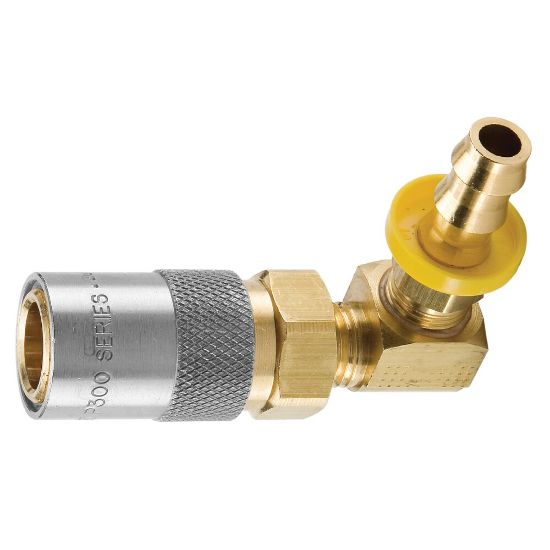

PC214AV-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PC214AV-BP

$27.69/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb, 90 degree	Coupling Half	Female Coupler
Body Material	BRASS	Body Size (inch)	1/4
Flow Rate	3	Connection Hose I.D. (inch)	1/4
Valve Style	Poppet	Division	Quick Coupling Division
Seal Material	Silicone - Fluorocarbon	Maximum Operating Temperature	400 °F
Maximum Operating Pressure	200 psi	Application	Hydraulics
Dimensional Weight	0.02670863309352518 lb	Product Type	Manual Connect
Plating Type	Zinc with clear trivalent chromate on sleeve	Hex Size	0.63 inch
Minimum Operating Temperature	-15 °F
