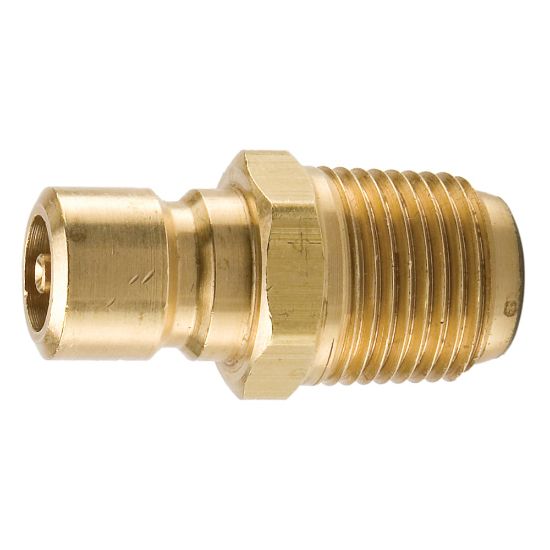

BPV252 - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU BPV252

$15.07/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	3
Valve Style	Poppet	Body Size (inch)	1/4
Connection Thread Size (inch)	1/4 - 18	Body Material	BRASS
Connection Type	Male NPTF	Connection Hose I.D. (inch)	na
Coupling Half	Male Nipple	Maximum Operating Pressure	200 psi
Minimum Operating Temperature	-15 °F	Application	Mold Coolant
Dimensional Weight	0.006677158273381295 lb	Product Type	Manual Connect
Hex Size	0.56 inch	Plating Type	na
Division	Quick Coupling Division	Maximum Operating Temperature	400 °F
Seal Material	Fluorocarbon
