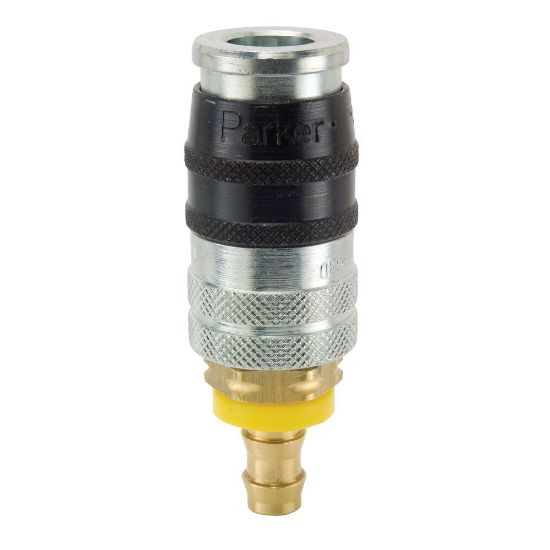

EZ-501-8PL - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series

Name: EZ-501-8PL - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series
SKU: EZ-501-8PL
Price: 76.16 USD
Availability: InStock

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Manufacturer: Parker

Availability:

5 in stock

Kansas City, KS

Partner Available:

59 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU EZ-501-8PL

$76.16/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/2
Connection Thread Size (inch)	na	Connection Type	Push-Lok hose barb
Thread Style	na	Connection Hose I.D. (inch)	1/2
Maximum Operating Pressure	300 psi	Body Material	Steel
Minimum Operating Temperature	-40 °F	Dimensional Weight	0.12464028776978417 lb
Specifications Met	ISO 4414 controlled pressure release	Sleeve Type	Push to connect
Application	Air	Media	Compressed air
Lock Type	Locking balls	Plating Type	Zinc with clear trivalent chromate on steel body
Coupling Half	Coupler	Division	Quick Coupling Division
Valve Type	Tubular	Special Option	Exhaust - venting
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
