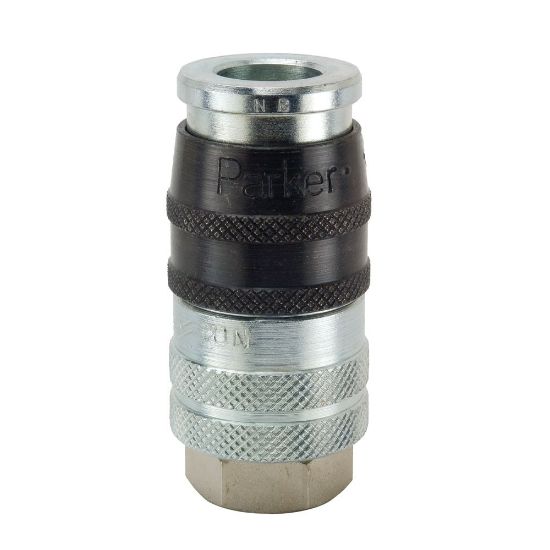

EZ-371-8FP - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 9 days
Partner Available:	90 in stock

SKU EZ-371-8FP

$80.97/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	3/8
Thread Style	Female	Connection Thread Size (inch)	1/2 - 14
Connection Type	NPTF	Connection Hose I.D. (inch)	na
Sleeve Type	Push to connect	Application	Air
Dimensional Weight	0.12464028776978417 lb	Body Material	Steel
Maximum Operating Pressure	300 psi	Coupling Half	Coupler
Plating Type	Zinc with clear trivalent chromate on steel body	Minimum Operating Temperature	-40 °F
Specifications Met	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)	Maximum Operating Temperature	250 °F
Special Option	Exhaust - venting	Seal Material	Nitrile
Lock Type	Locking balls	Media	Compressed air
Valve Type	Tubular	Division	Quick Coupling Division

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
