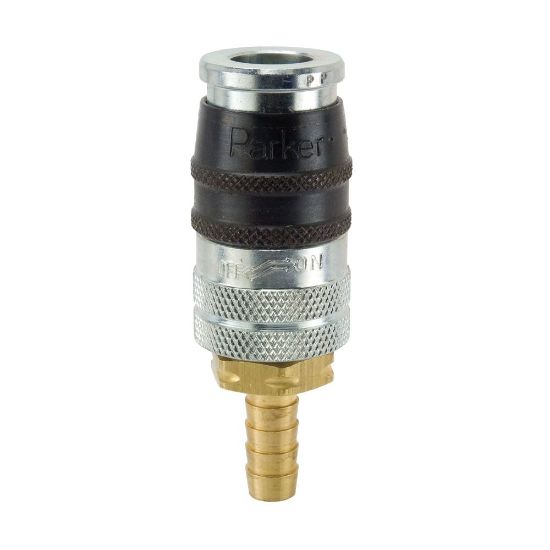

EZ-251-4HB - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series

Name: EZ-251-4HB - Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series
SKU: EZ-251-4HB
Price: 78.88 USD
Availability: LimitedAvailability

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.

Manufacturer: Parker

Availability:

2 Limited Stock

Olivette, MO

Partner Available:

16 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU EZ-251-4HB

$78.88/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size (inch)	1/4
Connection Thread Size (inch)	na	Connection Type	Hose barb
Thread Style	na	Connection Hose I.D. (inch)	1/4
Valve Type	Tubular	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Special Option	Exhaust - venting
Seal Material	Nitrile	Body Material	Steel
Maximum Operating Pressure	300 psi	Specifications Met	ISO 4414 controlled pressure release
Minimum Operating Temperature	-40 °F	Application	Air
Dimensional Weight	0.062320143884892085 lb	Sleeve Type	Push to connect
Lock Type	Locking balls	Media	Compressed air
Plating Type	Zinc with clear trivalent chromate on steel body	Coupling Half	Coupler
