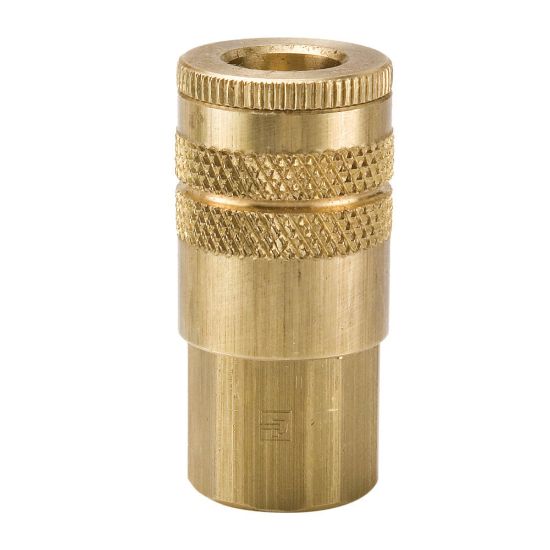

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

B23E - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Name: B23E - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series
SKU: B23E
Price: 20.65 USD
Availability: InStock

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

107 in stock

Olivette, MO	59
TOPEKA, KS	17
WICHITA, KS	5
COLUMBIA, MO	5
Kansas City, KS	5
Decatur, IL	5
Springfield, MO	4
Joplin, MO	4
Olivette, MO	3

Partner Available:

1167 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU B23E

$20.65/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Connection Thread Size (inch)	3/8 - 18
Thread Style	Female	Connection Type	NPTF
Connection Hose I.D. (inch)	na	Maximum Operating Pressure	300 psi
Body Material	Brass	Minimum Operating Temperature	-40 °F
Sleeve Type	Manual	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Application	Air	Dimensional Weight	0.026658673061550762 lb
Lock Type	Locking balls	Media	Low pressure fluids and compressed air
Coupling Half	Coupler	Plating Type	na
Valve Type	Tubular	Division	Quick Coupling Division
Maximum Operating Temperature	250 °F	Seal Material	Nitrile

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
