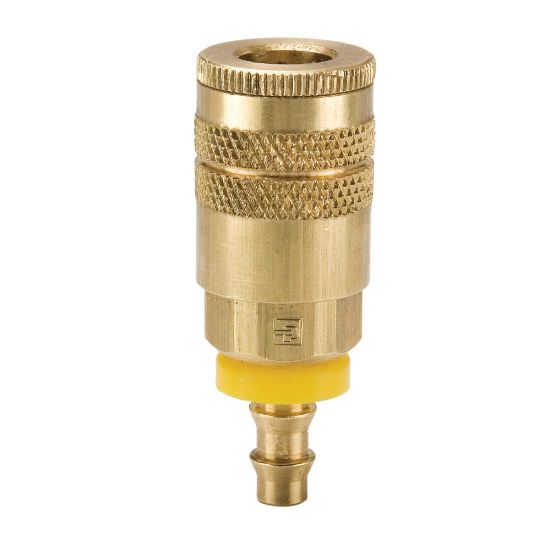

B20-3BPN - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	8 in stock

SKU B20-3BPN

$31.25/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Body Size (inch)	1/4	Connection Thread Size (inch)	na
Connection Type	Push-Lok hose barb	Thread Style	na
Connection Hose I.D. (inch)	1/4	Minimum Operating Temperature	-40 °F
Application	Air	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B)
Sleeve Type	Manual	Lock Type	Locking balls
Media	Low pressure fluids and compressed air	Seal Material	Nitrile
Plating Type	na	Coupling Half	Coupler
Valve Type	Tubular	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Maximum Operating Pressure	300 psi
Body Material	Brass

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
