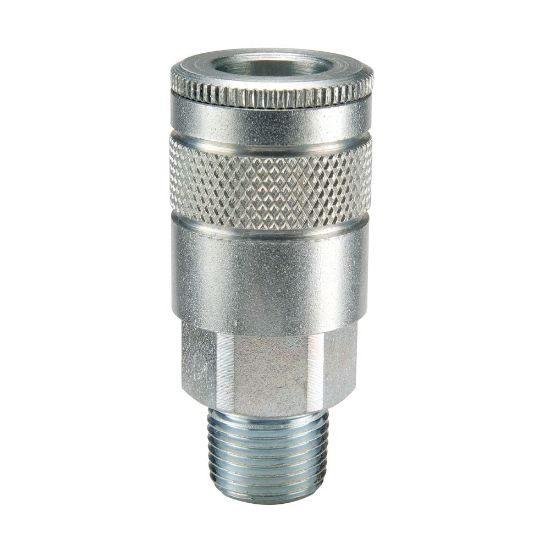

16 - Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

15 in stock

Decatur, IL	4
Springfield, MO	3
Olivette, MO	2
COLUMBIA, MO	2
Peoria, IL	2
Olivette, MO	2

Partner Available:

182 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 16

$31.03/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Body Size (inch)	1/2	Thread Style	Male
Connection Thread Size (inch)	1/2 - 14	Connection Type	NPTF
Connection Hose I.D. (inch)	na	Maximum Operating Pressure	300 psi
Application	Air	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Sleeve Type	Manual	Valve Type	Tubular
Division	Quick Coupling Division	Body Material	Steel
Media	Low pressure fluids and compressed air	Lock Type	Locking balls
Maximum Operating Temperature	250 °F	Seal Material	Nitrile
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Coupling Half	Coupler

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)
