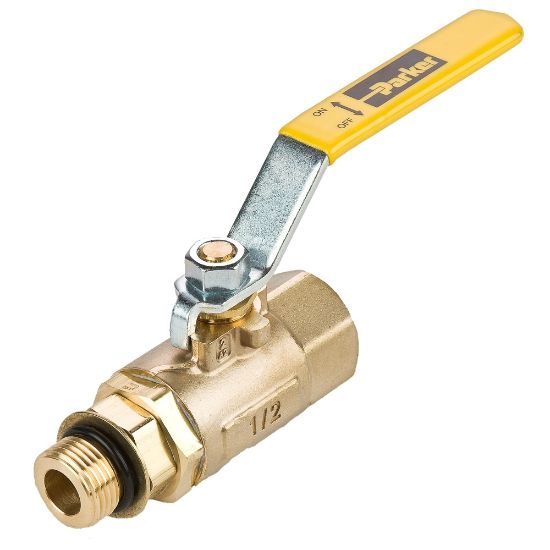

V510P-12 - Industrial Brass Ball Valves

Name: V510P-12 - Industrial Brass Ball Valves
SKU: V510P-12
Price: 171.17 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:

4 in stock

Kansas City, KS	3
Springfield, MO	1

Partner Available:

46 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU V510P-12

$171.17/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Size (inch)	1 1/16-12
Connection 2 Thread Size (inch)	1 1/16-12	Maximum Working Pressure (psi)	600
Vented	No	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Connection 1 Thread Style	Female Straight Thread	Style	Female Straight Thread to Male Straight Thread
Connection 2 Thread Style	Male Straight Thread	Minimum Operating Temperature	0
Function	2-Way, Normally Closed, Normally Open	Product Type	Brass Series 510 Ball Valve
Configuration	Male-Female STO SAE J1926 Ports	Actuation Type	Manual
Ball Material	Chrome Plated Brass	Orifice Size	.66
Mounting Type	Panel, In-Line	Connection Type	NPT, Straight Thread Solder
Operation Type	n/a	Maximum Operating Pressure	41
Handle Type	Lever	Shape	In-Line
Body Material	Brass	Seal Material	PTFE
Connection Size	3/4	Maximum Flow Rate	13
Division	Fluid System Connectors Division	Maximum Operating Temperature	350
Seat Material	PTFE
