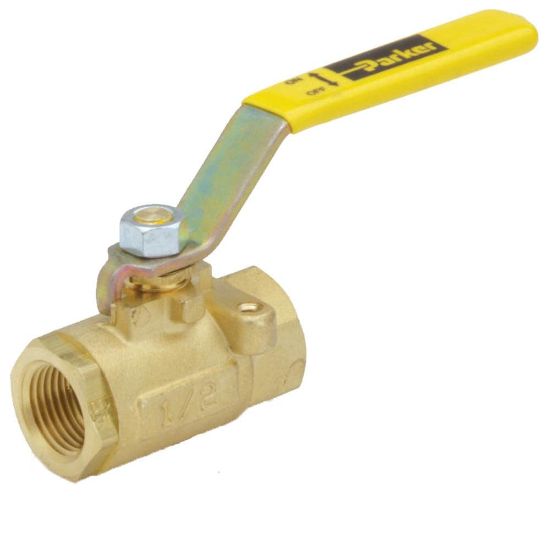

V502P-4 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	Backordered

SKU V502P-4

$39.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Maximum Working Pressure (psi)	600	Vented	No
Connection 2 Solder O.D. (inch)	na	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Shape	Panel mount	Function	2-Way, Normally Closed, Normally Open
Product Type	Brass Series 502 Ball Valve	Connection Size	1/4
Maximum Flow Rate	4	Maximum Operating Temperature	350
Seal Material	PTFE	Division	Fluid System Connectors Division
Minimum Operating Temperature	0	Maximum Operating Pressure	41
Actuation Type	Manual	Configuration	Female-Female PTF Ports
Handle Type	Lever	Mounting Type	Panel, In-Line
Ball Material	Chrome Plated Brass	Orifice Size	.38
Connection Type	NPT, Straight Thread Solder	Seat Material	PTFE
Shape	In-Line	Body Material	Brass
Operation Type	n/a
