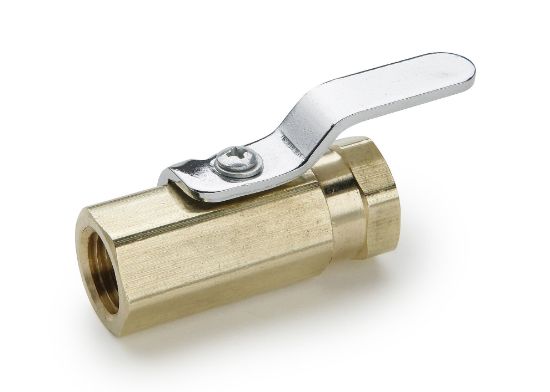

MV709-4 - Industrial Brass Ball Valves

Name: MV709-4 - Industrial Brass Ball Valves
SKU: MV709-4
Price: 19.11 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:

6 in stock

Kansas City, KS	4
Springfield, MO	2

Partner Available:

26 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU MV709-4

$19.11/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Vented	No	Connection 2 Solder O.D. (inch)	na
Maximum Working Pressure (psi)	500	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Handle	Chrome Plated Steel	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle Type	Lever
Body Material	Brass	Shape	In-Line
Configuration	Male-Female Ports	Maximum Operating Pressure	34 bar
Actuation Type	Manual	Division	Fluid System Connectors Division
Maximum Flow Rate	n/a	Maximum Operating Temperature	300 °F
Seat Material	PTFE	Connection Type	NPT
Operation Type	n/a	Product Type	Mini Ball Valve
Function	2-Way, Normally Closed, Normally Open	Seal Material	PTFE
Connection Size	1/4 inch	Orifice Size	.21 inch
Ball Material	Chrome Plated Brass	Mounting Type	Panel, In-Line
Minimum Operating Temperature	-35 °F
