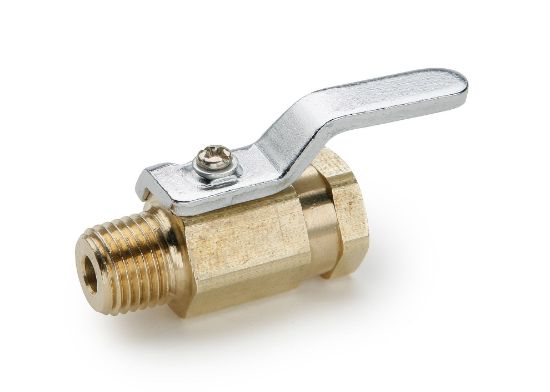

MV708-4 - Industrial Brass Ball Valves

Name: MV708-4 - Industrial Brass Ball Valves
SKU: MV708-4
Price: 17.69 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Manufacturer: Parker

Availability:

45 in stock

Olivette, MO	21
Kansas City, KS	20
TOPEKA, KS	4

Partner Available:

262 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU MV708-4

$17.69/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Vented	No	Connection 2 Solder O.D. (inch)	na
Maximum Working Pressure (psi)	500	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 2 Thread Style	Female Pipe
Style	Female/Male	Handle	Chrome Plated Steel
Connection 1 Thread Style	Male Pipe	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Seat Material	PTFE
Connection Type	NPT	Division	Fluid System Connectors Division
Body Material	Brass	Shape	In-Line
Operation Type	n/a	Connection Size	1/4 inch
Product Type	Mini Ball Valve	Function	2-Way, Normally Closed, Normally Open
Maximum Operating Temperature	148 °C	Maximum Flow Rate	n/a
Seal Material	PTFE	Mounting Type	Panel, In-Line
Minimum Operating Temperature	-37 °C	Ball Material	Chrome Plated Brass
Actuation Type	Manual	Handle Type	Lever
Maximum Operating Pressure	34 bar	Configuration	Male-Female Ports
Orifice Size	.21 inch
