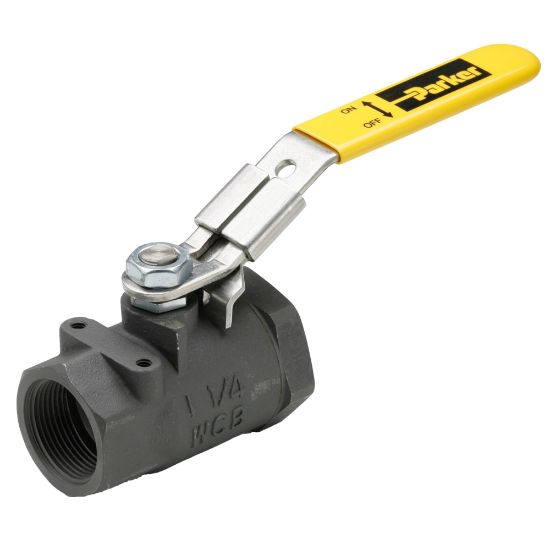

VP502CS-20 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 30 days
Partner Available:	3 in stock

SKU VP502CS-20

Products specifications

Attribute name	Attribute value
UOM	EA	Locking Mechanism	Padlock
Handle	Steel Lever	Maximum Working Pressure (psi)	1500
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Shape	Panel mount	Connection 2 Thread Size (inch)	1 1/4
Connection 2 Thread Style	Female Pipe	Connection 1 Thread Size (inch)	1 1/4
Product Type	Ball Valve	Connection Size	1 1/4
Function	Ball Valve	Mounting Type	Panel
Orifice Size	n/a	Ball Material	Steel
Specifications Met	n/a	Minimum Operating Temperature	-20
Body Material	Carbon Steel	Shape	in-line
Operation Type	n/a	Actuation Type	Manual
Configuration	In-Line	Handle Type	Lever
Maximum Operating Pressure	103	Maximum Operating Temperature	425
Seal Material	PTFE	Division	Fluid System Connectors Division
Maximum Flow Rate	n/a	Connection Type	NPT, Straight Thread, SAE J1926-1
Seat Material	PTFE
