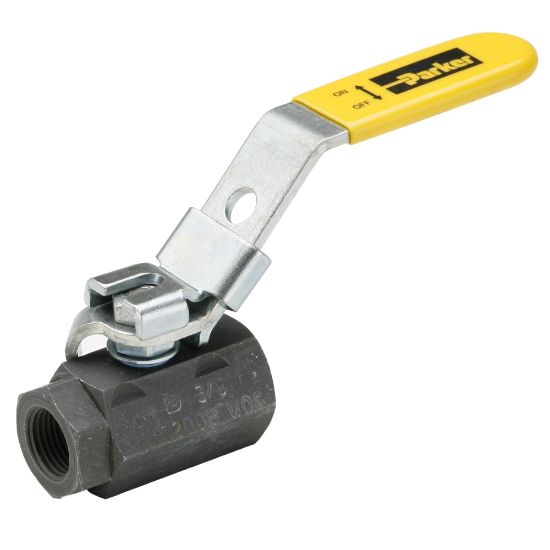

VP500CS-6 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	2 Limited Stock

SKU VP500CS-6

$93.10/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Handle	Steel Lever
Maximum Working Pressure (psi)	2000	Connection 1 Thread Size (inch)	3/8
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Connection 2 Thread Size (inch)	3/8	Shape	In Line
Style	Female Pipe Ends	Locking Mechanism	Padlock
Configuration	In-Line	Orifice Size	n/a
Actuation Type	Manual	Ball Material	Steel
Specifications Met	n/a	Mounting Type	Panel
Operation Type	n/a	Shape	in-line
Maximum Operating Pressure	138	Handle Type	Lever
Body Material	Carbon Steel	Seal Material	PTFE
Maximum Operating Temperature	425	Division	Fluid System Connectors Division
Connection Type	NPT, Straight Thread, SAE J1926-1	Maximum Flow Rate	n/a
Seat Material	Delrin Molybdenum Disulphide	Minimum Operating Temperature	-20
Function	Ball Valve	Connection Size	3/8
Product Type	Ball Valve
