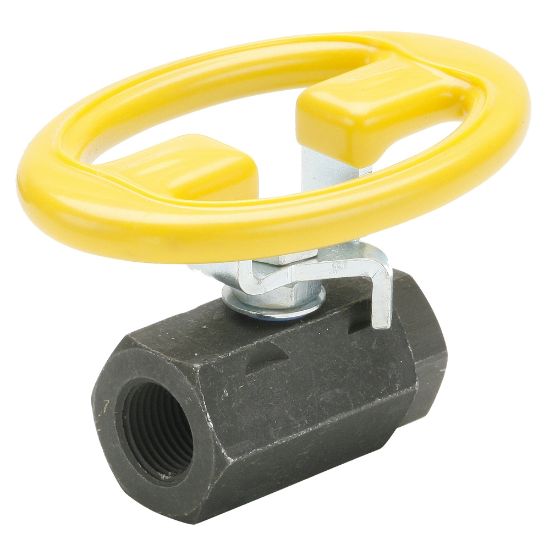

V500CS-8-21 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 22 days
Partner Available:	Backordered

SKU V500CS-8-21

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Style	Female Pipe
Maximum Working Pressure (psi)	2000	Connection 2 Thread Size (inch)	1/2
Handle	Steel Oval	Connection 1 Thread Size (inch)	1/2
Style	Female Pipe Ends	Shape	In Line
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Maximum Operating Temperature	425	Seal Material	PTFE
Division	Fluid System Connectors Division	Maximum Flow Rate	n/a
Connection Type	NPT, Straight Thread, SAE J1926-1	Seat Material	PTFE
Product Type	Ball Valve	Connection Size	1/2
Function	Ball Valve	Mounting Type	Panel
Ball Material	Steel	Specifications Met	n/a
Orifice Size	n/a	Minimum Operating Temperature	-20
Body Material	Carbon Steel	Shape	in-line
Operation Type	n/a	Actuation Type	Manual
Configuration	In-Line	Maximum Operating Pressure	138
Handle Type	Oval
