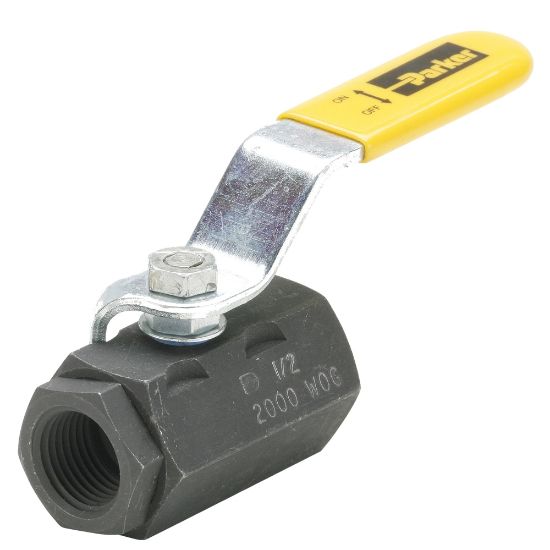

V500CS-4 - Industrial Ball Valves - Carbon Steel

Name: V500CS-4 - Industrial Ball Valves - Carbon Steel
SKU: V500CS-4
Price: 40.78 USD
Availability: InStock

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Manufacturer: Parker

Availability:

81 in stock

Wichita, KS	77
Springfield, MO	4

Partner Available:

198 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU V500CS-4

$40.78/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Connection 1 Thread Style	Female Pipe	Locking Mechanism	Non-Locking
Handle	Steel Lever	Maximum Working Pressure (psi)	2000
Connection 2 Thread Style	Female Pipe	Connection 1 Thread Size (inch)	1/4
Shape	In Line	Style	Female Pipe Ends
Maximum Operating Pressure	138	Configuration	In-Line
Handle Type	Lever	Actuation Type	Manual
Orifice Size	n/a	Specifications Met	n/a
Division	Fluid System Connectors Division	Connection Type	NPT, Straight Thread, SAE J1926-1
Seat Material	PTFE	Operation Type	n/a
Shape	in-line	Body Material	Carbon Steel
Function	Ball Valve	Connection Size	1/4
Product Type	Ball Valve	Maximum Flow Rate	n/a
Seal Material	PTFE	Maximum Operating Temperature	425
Minimum Operating Temperature	-20	Ball Material	Steel
Mounting Type	Panel
