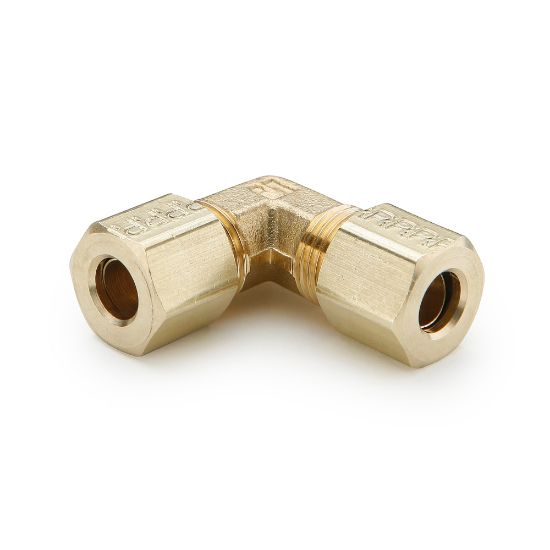

165C-10 - Inch Brass Compression Fittings

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 52 days
Partner Available:	Backordered

SKU 165C-10

$45.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Elbow 90°
Connection 2 Size	5/8"	Configuration	Tube to Tube
Body Material	Brass, Forged	Connection 1 Size	5/8"
Connection 1 Type	Compression	Connection 2 Type	Compression
Body Material	Brass	Weight	na
Maximum Operating Pressure	150 psi	Nut Material	Brass
Quantity per Box	na	Maximum Operating Temperature	250 °F
Division	Fluid System Connectors Division	Media	Water, air, inert and non-combustible gasses
Sleeve Material	Brass, Acetal	Tube Material	Copper, Aluminum, Thermoplastic
Application	Compressors, Machine Tools, Engine, Pumps, Purification	Specifications Met	SAE J-512
Minimum Operating Temperature	-65 °F
