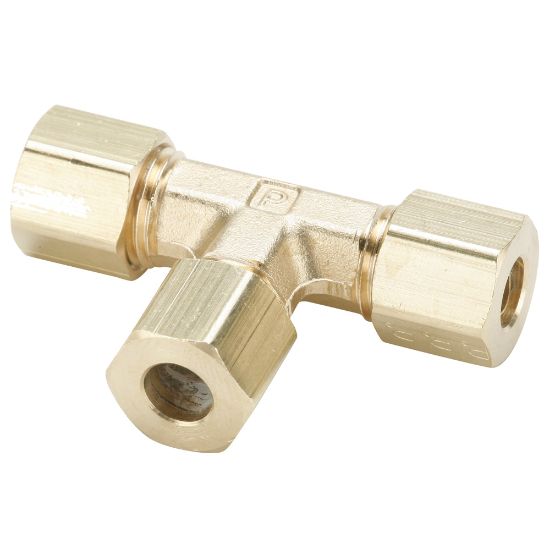

164C-6 - Inch Brass Compression Fittings

Name: 164C-6 - Inch Brass Compression Fittings
SKU: 164C-6
Price: 13.83 USD
Availability: InStock

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

Manufacturer: Parker

Availability:

5 in stock

Kansas City, KS

Partner Available:

103 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 164C-6

$13.83/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Connection 1 Size	3/8"	Connection 2 Size	3/8"
Configuration	Tube to Tube	Body Material	Brass, Forged
Connection 1 Type	Compression	Connection 2 Type	Compression
Connection 3 Size	3/8"	Connection 3 Type	Compression
Nut Material	Brass	Body Material	Brass
Weight	na	Maximum Operating Pressure	68.9 bar
Maximum Operating Temperature	121 °C	Division	Fluid System Connectors Division
Minimum Operating Temperature	-54 °C	Media	Water, air, inert and non-combustible gasses
Tube Material	Copper, Aluminum, Thermoplastic	Sleeve Material	Brass, Acetal
Dimensional Weight	0.1104 lb	Quantity per Box	na
Application	Compressors, Machine Tools, Engine, Pumps, Purification	Specifications Met	SAE J-512
