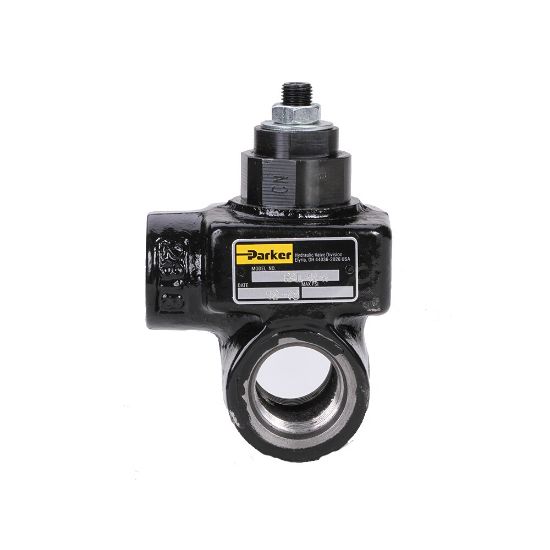

RPJL-12-A - In-Line Mounted Pilot Operated Relief Valve - RPJL Series

Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	2 Limited Stock

SKU RPJL-12-A

$687.96/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Port Size	SAE-12
Body Material	High Strength Cast Iron	Weight	3 lb
Maximum Operating Pressure	5000 psi	For Fluid Type	Hydraulic Oil
Maximum Operating Temperature	+200 °F	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	25 Gal/min	Connection Type	SAE
Seal Material	Nitrile	Connection Size	#12
Adjustment Mechanism	Adjustable	Minimum Operating Temperature	-40 °F
Mounting Type	In-Line	Pressure Control Range	Adjustable
Product Style	In-Line Pilot Mounted Operated Relief Valve	Actuation Type	Adjustable
