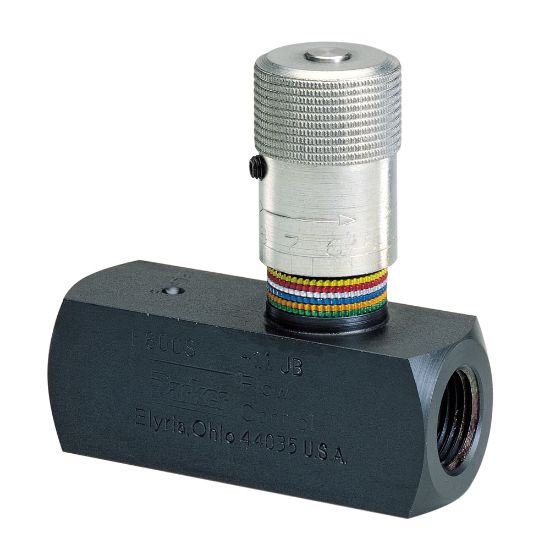

8F400S - In-line Flow Control Valve – F Series

The Colorflow F series of hydraulic flow control valves permits free flow in one direction and metered flow in the reverse direction. This flow control valve is used in air and oil applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 89 days
Partner Available:	Backordered

SKU 8F400S

$125.60/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Configuration	InLine	Poppet Style	Metal
Maximum Flow Rate	5	Function	Flow Control
Cracking Pressure (psi)	5	Minimum Operating Temperature	-40
Connection Type	BSPT	Actuation Type	Manual
Maximum Operating Temperature	+250	Maximum Operating Pressure (psi)	5000
Connection Size	1/4"	Seal Material	Nitrile
Needle	Standard	Knob Option	Standard
Connection Type	Female to Female	Maximum Operating Pressure	5000 psi
Body Material	Steel	Seal Material	Nitrile
Connection Size	1/4 inch	Maximum Flow Rate	19 L/min
Division	Hydraulic Valve Systems Division	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Media	Oil
Function	Flow Control	Configuration	Inline
Actuation Type	Manual	Flow Rate	n/a
Brand	Colorflow
