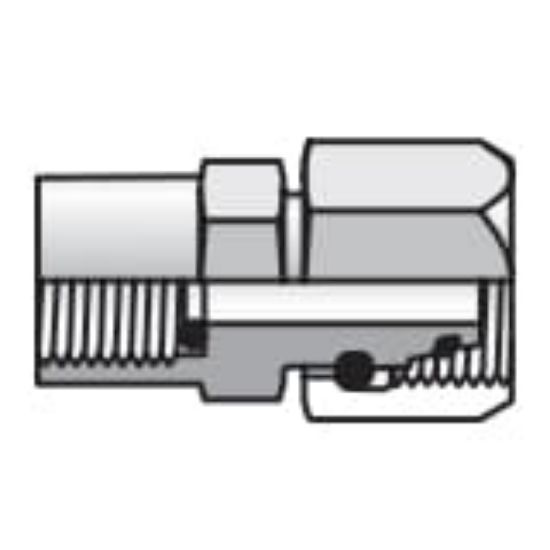

MAVE10LRCF - In-Line Diagnostic Fittings and Adapters

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	46 in stock

SKU MAVE10LRCF

$25.14/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	O-Ring Material	NBR
Connection 2 Thread Size (mm)	na	Connection 1 Tube O.D. (inch)	na
Connection 2 Tube O.D. (mm)	na	Connection 3 Thread Size (inch)	na
Connection 3 Style	na	Connection 1 Style	Male 24° Metric Flareless Swivel
Connection 2 Style	Female BSPP with Sealing Washer	Body Material	Steel
Connection 1 Tube O.D. (mm)	10L	Connection 3 Thread Size (mm)	na
Connection 2 Thread Size (inch)	1/4-19	Connection 2 Tube O.D. (inch)	na
Dimensional Weight	0.02158273381294964 lb	Body Material	Steel
Division	Tube Fittings Division	Connection Type	BSPP Pressure Gauge Adapter
Maximum Static Pressure	4600 psi	Maximum Dynamic Pressure	4600 psi

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
