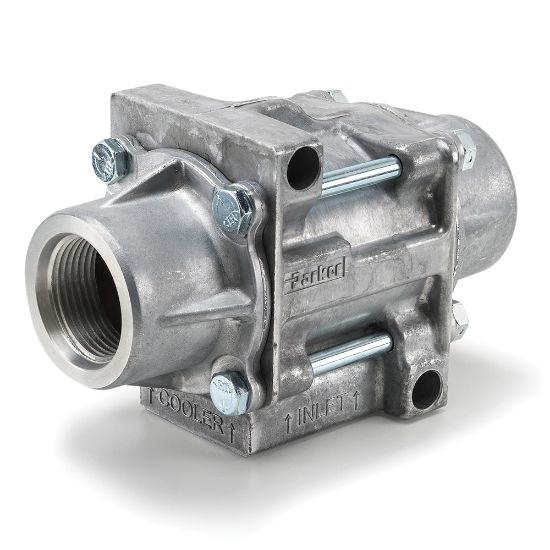

TH-1000-16FO-33 - Hydraulic Thermal Bypass Valves - TH Series

Parker's thermal bypass valves modulate fluid temperature by shifting return line flow through the cooler, or bypassing it directly to the reservoir.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	8 in stock

SKU TH-1000-16FO-33

$209.54/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Type	Female SAE ORB
Connection Thread Size (inch)	1 5/16 - 12 UN	Cracking Pressure (psi)	65
Shift Temperature (F)	120	Maximum Operating Pressure	250 psi
Body Material	Aluminum	Seal Material	Elastomeric
Maximum Flow Rate	60 Gal/min	Division	Quick Coupling Division
Valve Port Size	1 inch	Maximum Operating Temperature	195 °F
For Fluid Type	Hydraulic Oil	Minimum Operating Temperature	-30 °F
Function	Diverter	Actuation Type	Mechanical
Flow Rate	60 Gal/min
