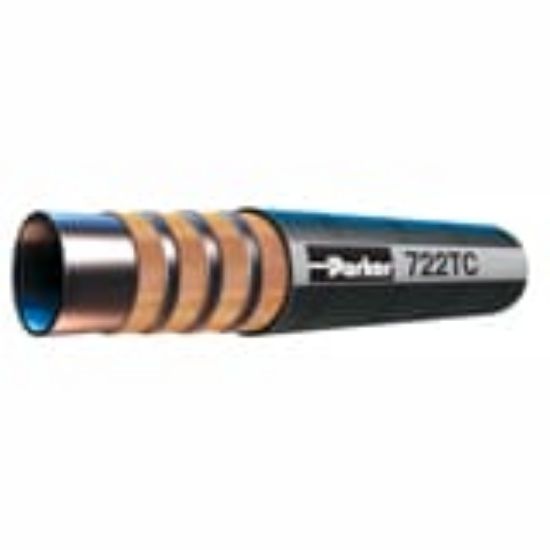

722TC-32 - Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose

Name: 722TC-32 - Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose
SKU: 722TC-32
Price: 88.26 USD
Availability: InStock

Parker’s 722TC/ST hose is a hydraulic industry standard hose that has a pressure range of 2500-3000 PSI, with a synthetic rubber inner tube providing a wider range of fluid compatibility.

Manufacturer: Parker

Availability:

50 in stock

Olivette, MO

Partner Available:

404 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 722TC-32

$88.26/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-32
Hose Cover Type	ToughCover	Division	Hose Products Division
Application	Lubricating Oils	Media	Petroleum Hydraulic Fluids
Maximum Operating Pressure	17.5 MPa	Maximum Operating Temperature	257 °F
Minimum Operating Temperature	-40 °C	Specifications Met	EN 856, Type R12
Weight	4.09 kg/m	Outside Diameter	66 mm
Cover Material	MSHA Approved	Inside Diameter	2 inch
Compatible Fitting	71 Series	Minimum Bend Radius	12-1/2 inch
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	4 Spirals of Steel Wire
Nominal Hose Inside Diameter	51 mm

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
