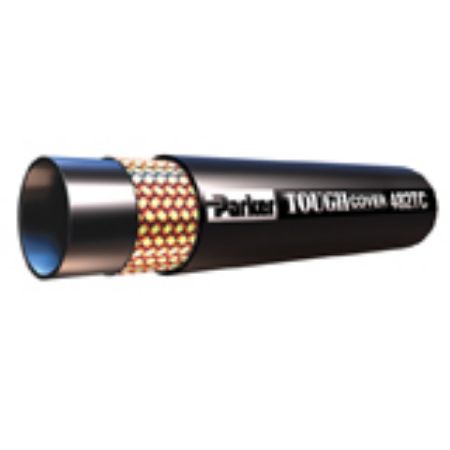

Hydraulic Industry Standard Hose 1275-3250 PSI – 482 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 482 hose is a hydraulic industry standard hose that has a pressure range of 1275-3250 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility. The 482 hose is designed, built, and tested to meet SAE 100R1 performance specifications. Sizes range from ¼” to 1” in diameter with different cover options available for various markets.
Markets:
• Transportation
• Military
• Construction
• Agriculture
• Utility Equipment
• Personnel Lift Equipment
• Material Handling
Features/Benefits:
• ToughCover or SuperTough cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 1275-3250 PSI working pressure in different sizes
• ISO 1436-1 Type 1SN / SAE J517 100R1AT / EN 853 Type 1SN certifications
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 series fittings
• 42 series fittings
| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Hose I.D. (size) | Hose Cover Type | Division | Application | Media | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Specifications Met | Weight | Outside Diameter | Cover Material | Inside Diameter | Compatible Fitting | Minimum Bend Radius | Hose Inner Tube Material | Hose Reinforcement Material | Nominal Hose Inside Diameter | Material | Pkg Qty/UOM | Pkg Qty | Inner Diameter | Working Pressure | Mating Fitting Series | Parker Group | Inch/Metric | Parker Division | Inner Diameter | Inner Diameter Inch/mm | Material | Working Pressure Range | Application | Hose Pressure Range | Hose Category | Distinct Properties | Mating End Fitting Series | Series | Cover Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 482TC-12 | Backordered | 133 in stock | $20.07/foot | FT | FT | -12 | Tough Cover | Hose Products Division | Petroleum Base Hydraulic Fluids | Lubricants | 1750 psi | 212 °F | -40 °C | SAE J1942 | 0.42 lb/ft | 1.090 inch | MSHA Approved | 19 mm | 43 Series | 120 mm | Synthetic Rubber | 1 Braid of Steel Wire | 19 mm | Rubber | 250 FT | 250 | 0.75 Inch | 1750 PSI (120 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.75 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 43, 42 | 482TC | ||
| 482TC-16 | Backordered | 147 in stock | $26.28/foot | FT | FT | -16 | Tough Cover | Hose Products Division | Petroleum Base Hydraulic Fluids | Petroleum Hydraulic Fluids | 1275 psi | 100 °C | -40 °F | ISO 1436, Type 1SN | 0.63 lb/ft | 36 mm | MSHA Approved | 1 inch | 43 Series | 150 mm | Synthetic Rubber | 1 Braid of Steel Wire | 25 mm | Rubber | 250 FT | 250 | 1 Inch | 1275 PSI (90 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 1 Inch | Inch | Rubber | 1000 to 1999 PSI (69 to 138 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 43, 42 | 482TC | ||
| 482TC-4 | Backordered | Backordered | $7.52/foot | FT | FT | -4 | Tough Cover | Hose Products Division | Lubricating Oils | Petroleum Hydraulic Fluids | 3250 psi | 100 °C | -40 °C | ISO 1436, Type 1SN | 0.24 kg/m | 0.530 inch | Synthetic Rubber Abrasion Resistant | 1/4 inch | 43 Series | 50 mm | Synthetic Rubber | 1 Braid of Steel Wire | 6 mm | Rubber | 250 FT | 250 | 0.25 Inch | 3250 PSI (220 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.25 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 43, 42 | 482TC | Black | |
| 482TC-5 | Backordered | 190 in stock | $9.94/foot | FT | FT | -5 | Tough Cover | Hose Products Division | Lubricating Oils | Petroleum Hydraulic Fluids | 22.7 MPa | 212 °F | -40 °C | EN 853, Type 1SN | 0.18 lb/ft | 0.590 inch | Synthetic Rubber Abrasion Resistant | 8 mm | 43 Series | 55 mm | Synthetic Rubber | 1 Braid of Steel Wire | 8 mm | Rubber | 250 FT | 250 | 0.313 Inch | 3250 PSI (220 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.313 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 43, 42 | 482TC | ||
| 482TC-6 | Backordered | 772 in stock | $10.17/foot | FT | FT | -6 | Tough Cover | Hose Products Division | Petroleum Base Hydraulic Fluids | Petroleum Hydraulic Fluids | 21 MPa | 100 °C | -40 °C | SAE 100R1, Type AT | 0.23 lb/ft | 17 mm | Synthetic Rubber Abrasion Resistant | 3/8 inch | 43 Series | 2-1/2 inch | Synthetic Rubber | 1 Braid of Steel Wire | 10 mm | Rubber | 300 FT | 300 | 0.375 Inch | 3000 PSI (210 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.375 Inch | Inch | Rubber | 3000 to 3999 PSI (207 to 276 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 43, 42 | 482TC | ||
| 482TC-8 | Backordered | 448 in stock | $11.48/foot | FT | FT | -8 | Tough Cover | Hose Products Division | Lubricating Oils | Petroleum Hydraulic Fluids | 2500 psi | 100 °C | -40 °C | SAE 100R1, Type AT | 0.43 kg/m | 21 mm | Synthetic Rubber Abrasion Resistant | 1/2 inch | 43 Series | 3-1/2 inch | Synthetic Rubber | 1 Braid of Steel Wire | 12 mm | Rubber | 250 FT | 250 | 0.5 Inch | 2500 PSI (170 bar) | 43, 42 | Fluid Connector | Inch | Hose Products | 0.5 Inch | Inch | Rubber | 2000 to 2999 PSI ( 138 to 207 bar) | Hydraulic | Medium | Hydraulic Industry Standard | Tough Cover | 43, 42 | 482TC |
