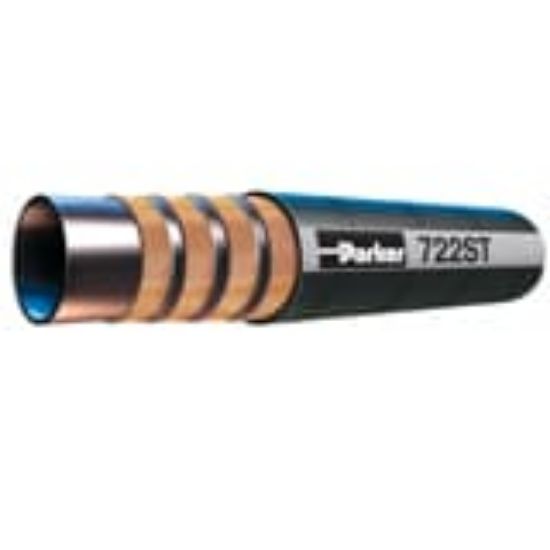

722-10 - Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 722 Hose

With 4,000 PSI constant working pressure hoses, half SAE bend radius, and three cover options, Parker’s 722 GlobalCore hose delivers maximum performance and efficiency.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 722-10

$17.75/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-10
Hose Cover Type	Standard Cover	Minimum Bend Radius	4 inch
Minimum Operating Temperature	-40 °C	Cover Material	Synthetic Rubber
Media	Lubricants (Oils)	Hose Cover Type	Standard Cover
Outside Diameter	1.040 inch	Nominal Hose Inside Diameter	16 mm
Hose Reinforcement Material	4 Spirals	Specifications Met	ISO 18752
Application	Lubricating Oils	Inside Diameter	5/8 inch
Weight	0.74 lb/ft	Maximum Operating Pressure	28 MPa
Hose Inner Tube Material	Synthetic Rubber	Division	Hose Products Division
Compatible Fitting	43 Series	Maximum Operating Temperature	212 °F
