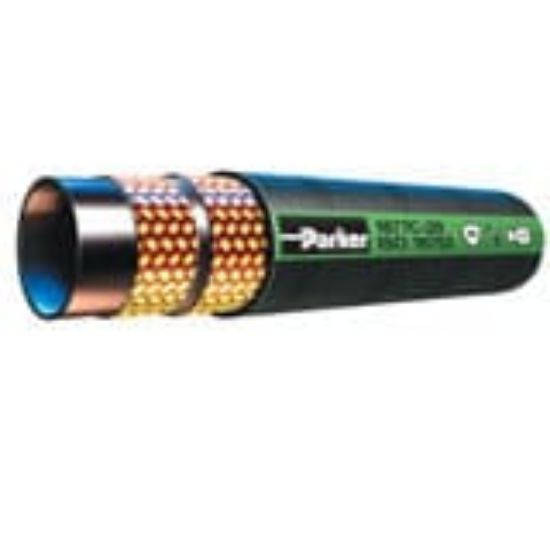

187ST-20 - Hydraulic Constant Working Pressure Hose 1000 PSI - GlobalCore 187 Hose

Robust and reliable 187 hose expands the unified GlobalCore series of ISO 18752 hoses as the first and only 1,000 PSI constant working pressure hydraulic hose offered in sizes -8 through -48.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU 187ST-20

$32.42/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Hose Cover Type	SuperTough	Division	Hose Products Division
Compatible Fitting	43 Series	Maximum Operating Temperature	257 °F
Size	-20	Hose Cover Type	SuperTough
Media	Petroleum Hydraulic Fluids (Petroleum Base)	Hose Inner Tube Material	Synthetic Rubber
Specifications Met	ISO 18752	Hose Reinforcement Material	2 Braids of Steel Wire
Application	Agriculture Equipment	Minimum Bend Radius	140 mm
Minimum Operating Temperature	-40 °C	Cover Material	Synthetic Rubber Super Abrasion Resistant
Weight	1.85 kg/m	Maximum Operating Pressure	1000 psi
Vacuum Pressure Rating	60 kPa	Inside Diameter	1-1/4 inch
Outside Diameter	44 mm	Nominal Hose Inside Diameter	31 mm
