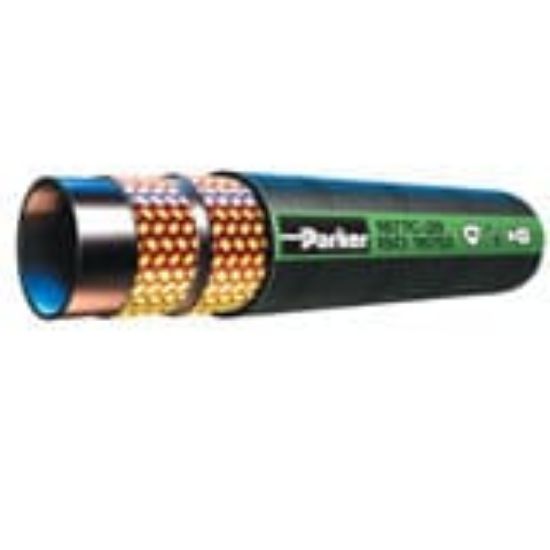

187-10 - Hydraulic Constant Working Pressure Hose 1000 PSI - GlobalCore 187 Hose

Robust and reliable 187 hose expands the unified GlobalCore series of ISO 18752 hoses as the first and only 1,000 PSI constant working pressure hydraulic hose offered in sizes -8 through -48.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 187-10

$6.12/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-10
Hose Cover Type	Standard	Hose Reinforcement Material	1 Braid of Steel Wire
Minimum Bend Radius	3 inch	Minimum Operating Temperature	-40 °F
Hose Cover Type	Standard Cover	Cover Material	Synthetic Rubber
Nominal Hose Inside Diameter	16 mm	Inside Diameter	5/8 inch
Outside Diameter	0.930 inch	Maximum Operating Pressure	1000 psi
Weight	0.49 kg/m	Application	Transportation
Specifications Met	ISO 18752	Division	Hose Products Division
Vacuum Pressure Rating	609.6 mm-Hg	Media	Petroleum Hydraulic Fluids (Petroleum Base)
Size	-10	Hose Inner Tube Material	Synthetic Rubber
Maximum Operating Temperature	100 °C	Compatible Fitting	43 Series
