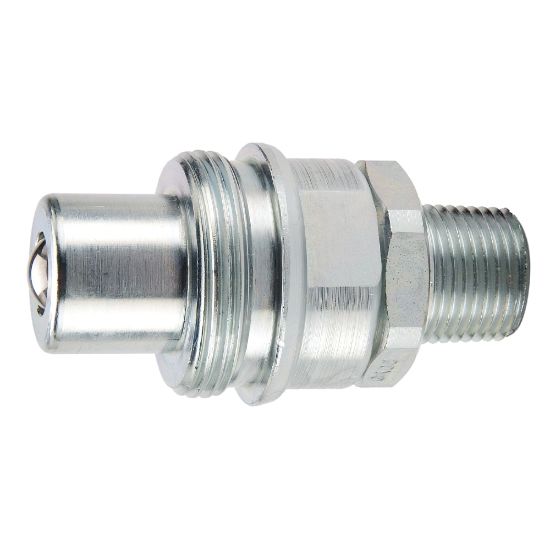

3010-3-230 - High Pressure, Thread to Connect Quick Couplings, ISO 14540 - 3000 series

Parker's high pressure, thread to connect quick couplers and nipples are ideal for fast and easy connection and disconnection of hydraulic hand tools to fluid lines.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	118 in stock

SKU 3010-3-230

$67.41/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Male Nipple
Connection Type	Male NPTF	Body Size	3/8 inch
Connection Thread Size	3/8 - 18	Seal Material	Polyurethane
Plating Type	Zinc with clear trivalent chromate	Product Type	Thread to connect
Valve Type	Ball	Division	Quick Coupling Division
Maximum Operating Temperature	230 °F	Maximum Operating Pressure	10,000 psi
Body Material	Steel	Hex Size	1.00 inch
Minimum Operating Temperature	-22 °F	Flow Rate	6 Gal/min
Application	Hydraulic, high pressure
