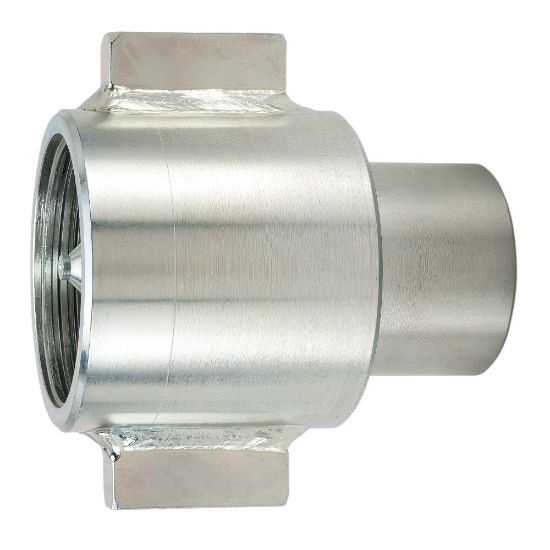

75C12-12F - High Pressure, Thread to Connect Couplings, API 16D - 75 Series

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	3 in stock

SKU 75C12-12F

$172.46/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Thread Size (inch)	3/4 - 14	Connection Type	Female NPSF
Body Size (inch)	3/4	Sleeve Type	Hex nut
Maximum Operating Pressure	5000	Specifications Met	na
Application	High Pressure Hydraulics	Hex Size	1.31 inch
Minimum Operating Temperature	-40 °F	Body Material	Steel
Dimensional Weight	0.22945143884892086 lb	Maximum Operating Temperature	250 °F
Division	Quick Coupling Division	Valve Type	Poppet
Plating Type	Zinc with Clear Trivalent Chromate	Product Type	Thread to Connect
Seal Material	Nitrile
