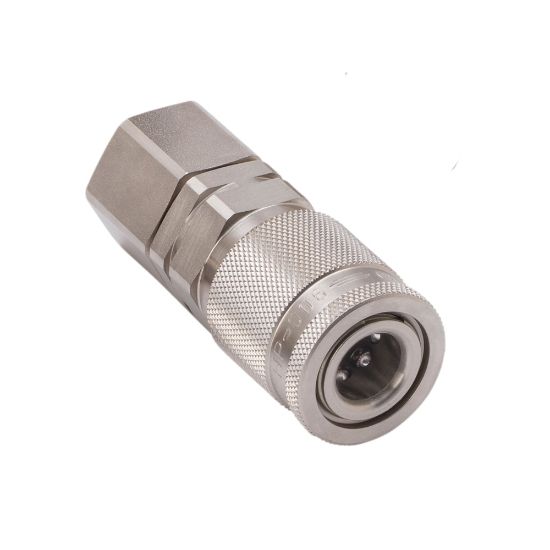

HP010-0-NFD - High Pressure Quick Couplings - Rogan Series

Quick couplings for quick and easy hose assembly for Parker UHP Hose . Couplings are available in a variety of connection styles with working pressures ranging from 15,000 psi to 30,000 psi.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU HP010-0-NFD

$870.64/each

Products specifications

Attribute name	Attribute value
UOM	EA	Thread Type	Female
Connection Style	NPT	Flow Diameter (inch)	0.4
Coupling Half	Coupler	Connection Size (inch)	1/2" - 14
Connection Size	1/2"-14 inch	Division	Parflex Division
Hex Size	41.15 mm	Coupling Half	Coupler
Flow Diameter	10 mm	Maximum Operating Pressure	103 MPa
Materials of Construction	Alloy Steel	Connection Type	Female Thread
Body Material	Alloy Steel	Overall Length	4.27 inch
