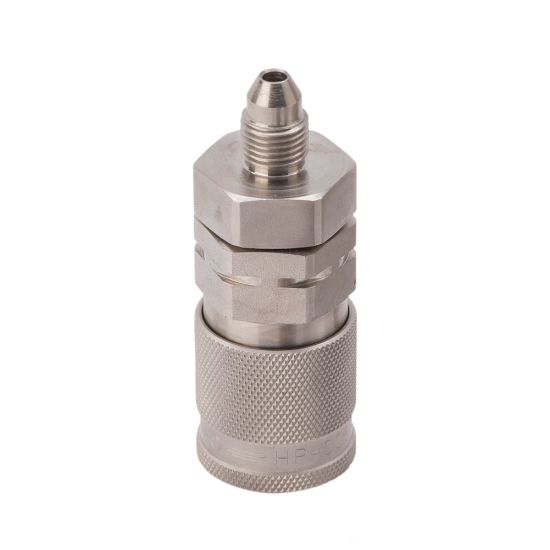

HP006-1-LM6 - High Pressure Quick Couplings - Rogan Series

Quick couplings for quick and easy hose assembly for Parker UHP Hose . Couplings are available in a variety of connection styles with working pressures ranging from 15,000 psi to 30,000 psi.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 63 days
Partner Available:	Backordered

SKU HP006-1-LM6

$296.51/each

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Diameter (inch)	0.24
Connection Size (inch)	9/16" - 18 UNF	Connection Style	Medium Pressure
Thread Type	Male	Coupling Half	Nipple without Check Valve
Connection Size	9/16"-18 UNF inch	Division	Parflex Division
Hex Size	0.75 inch	Coupling Half	Nipple without Check Valve
Flow Diameter	6 mm	Maximum Operating Pressure	138 MPa
Materials of Construction	Alloy Steel	Connection Type	Medium Pressure
Overall Length	59.18 mm	Body Material	Alloy Steel
