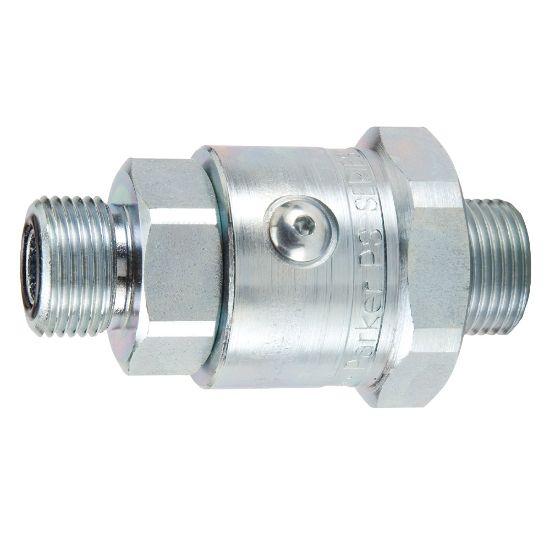

PS161JMJM-16-16 - High Pressure, Inline Hydraulic Swivels - PS Series

Parker's swivels are designed to eliminate hose twist and torque that may contribute to premature hose failure.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU PS161JMJM-16-16

$266.18/each

Products specifications

Attribute name	Attribute value
UOM	EA	Configuration	InLine
Shaft Connection Style	Male Seal-Lok	Maximum Working Pressure (psi)	5000
Housing Connection Thread Size (inch)	1 7/16 - 12 UN	Body Size (inch)	1
Housing Connection Style	Male Seal-Lok	Shaft Connection Thread Size (inch)	1 7/16 - 12 UN
Seal Material	Nitrile	Body Material	Steel
Dimensional Weight	0.31160071942446044 lb	Configuration	Inline
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Maximum Operating Temperature	250 °F
