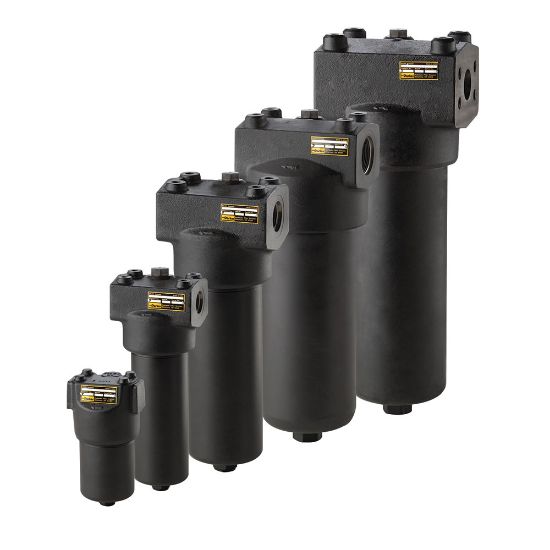

WPF102QEBM2KS081 - High Pressure Inline Filter WPF Series

The new industry standard in high pressure hydraulic filtration incorporating advanced features designed to improve system reliability. Allowable operating pressure of 7000 PSI/483 Bar and capable of flows up to 137 GPM/520 LPM depending on viscosity.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU WPF102QEBM2KS081

$653.85/each

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	02Q Microglass
Flow Rate	10 gpm (37.8 lpm)	Options	Bypass
Indicator Type	50 psi visual	Port Connection Type	SAE-8
Bypass Valve Pressure Rating	50 psi (3.5 bar)	Seal Material	Nitrile
Mounting Style	Inline	Flow Rate	37.8 L/min
Compatible Element	941029Q	Product Style	Hydraulic Filter
Indicator Type	50 psi visual	Weight	9 lb
Indicator Pressure Setting	7.7 bar	Port Type	SAE-8
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Maximum Operating Temperature	135.0 °C
Division	Engine Mobile Hydraulic and Fuel Filtration Division	Pressure Rating	483 bar
Filter Element Type	Coreless	Product Type	Hydraulic Filter
Housing Material	SG Iron head and forged steel bowl	Bypass Valve Pressure Rating	3.5 bar
Seal Material	Nitrile	Options	Bypass
