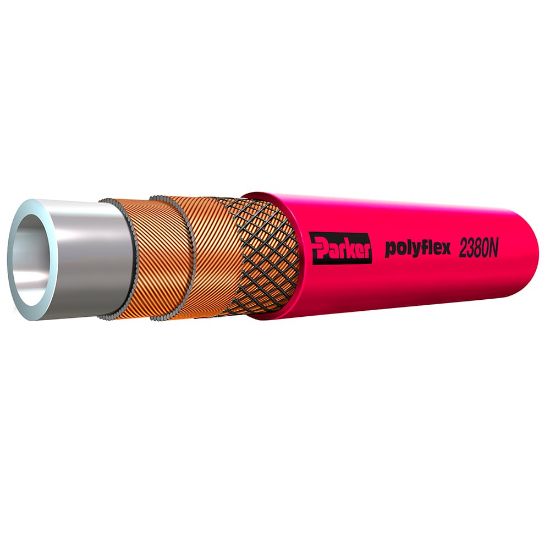

2380N-04V04 - High Pressure Hydraulic Hose - 2380N/2388N

Parker 2380N and 2388N high pressure hydraulic hoses feature low volumetric expansion and are available as a twinline hose. Ideal for oil and gas applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU 2380N-04V04

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/4
Cover Color	Red	Maximum Working Pressure (psi)	10,150
Application	Oil & Gas Hydraulic Systems	Specifications Met	n/a
Inside Diameter	6.4 mm	Outside Diameter	13.3 mm
Maximum Operating Pressure	70 MPa	Hose Reinforcement Material	2 Spirals and 2 Open Spirals of High Tensile Steel Wire
Minimum Bend Radius	70 mm	Cover Material	Polyurethane
Minimum Operating Temperature	-40 °C	Size	-4
Hose Inner Tube Material	Polyamide 12	Maximum Operating Temperature	100 °C
Compatible Fitting	8X Series	Design Factor	4:1
Media	Petroleum Hydraulic Fluids	Weight	0.27 kg/m
