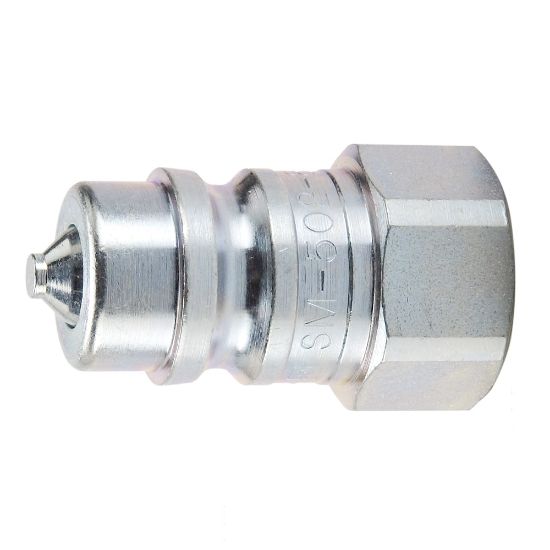

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

SM-252-4FB - High Pressure, Hydraulic General Purpose Quick Couplings - SM Series

Parker's general purpose quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	1 Limited Stock

SKU SM-252-4FB

Products specifications

Attribute name	Attribute value
UOM	EA	Flow Rate	3 GAL/MIN
Connection Thread Size (inch)	G 1/4	Body Size (inch)	1/4
Coupling Half	Male Nipple	Maximum Operating Pressure	6000 PSI
Connection Type	Female BSPP	Minimum Operating Temperature	-40 °F
Hex Size	0.75	Application	Hydraulic \|General purpose
Body Material	Steel	Division	Quick Coupling Division
Valve Type	Poppet	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Product Type	Manual Connect
Plating Type	Zinc with clear trivalent chromate

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
