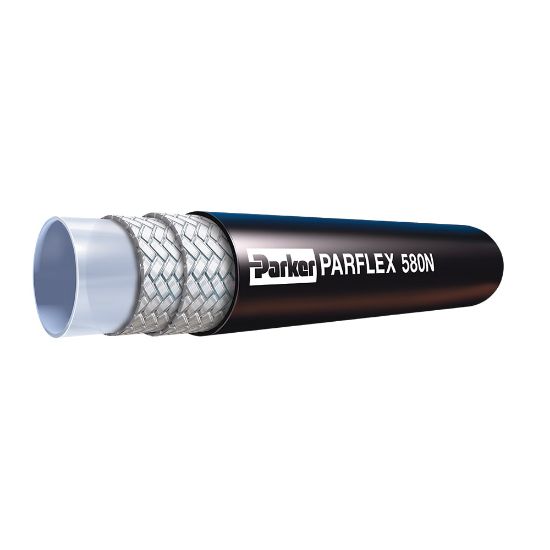

580N-8 - High Pressure Hose - 580N/588N

Name: 580N-8 - High Pressure Hose - 580N/588N
SKU: 580N-8
Price: 10.40 USD
Availability: InStock

The 580N/588N High Pressure Flexible Hose meets SAE 100R8 specifications and offers a smaller O.D. and lighter weight than the 100R2, replacing 100R2 rubber hose wherever greater flexibility, fluid compatibility, and cover durability are required.

Manufacturer: Parker

Availability:

12 in stock

TOPEKA, KS

Partner Available:

424 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 580N-8

$10.40/foot

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1/2
Hose Type	General Purpose	Size	-8
Division	Parflex Division	Compatible Fitting	56 Series
Maximum Operating Temperature	100 °C	Hose Inner Tube Material	Polyamide (PA)
Media	Chemicals	Design Factor	4:1
Cover Material	Polyurethane	Minimum Bend Radius	4 inch
Specifications Met	SAE 100R8	Product Style	Standard
Minimum Operating Temperature	-40 °F	Hose Reinforcement Material	Fiber
Application	Fluid Handling	Inside Diameter	1/2 inch
Weight	0.31 kg/m	Outside Diameter	22.6 mm
Maximum Operating Pressure	241 bar
