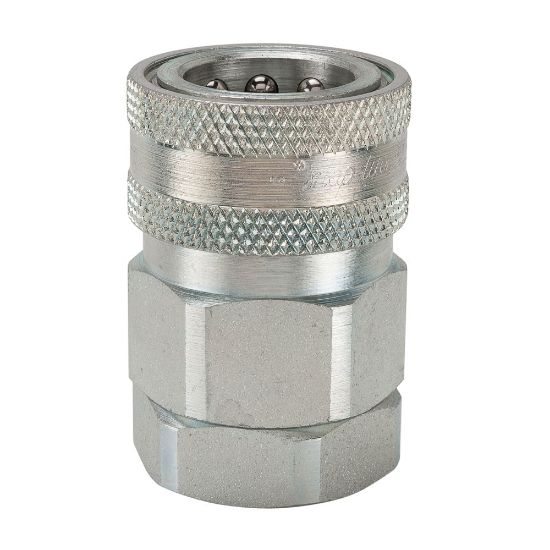

VIHC4-4FSL - High Pressure, High Flow, Quick Connect Air Couplers - IH Series

Parker's Snap-tite, high pressure, high flow quick connect air couplers and nipples are suitable for applications where high volume air lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU VIHC4-4FSL

$43.48/each

Products specifications

Attribute name	Attribute value
UOM	EA	Sleeve Type	Manual with sleeve lock
Connection Thread Size (inch)	1/4 - 18	Thread Style	Female
Body Size (inch)	1/4	Connection Type	NPTF
Division	Quick Coupling Division	Valve Type	Tubular
Maximum Operating Temperature	250 °F	Plating Type	Zinc with clear trivalent chromate
Coupling Half	Coupler	Lock Type	Locking balls
Seal Material	Nitrile	Application	Air
Minimum Operating Temperature	-40 °F	Maximum Operating Pressure	6500 psi
Body Material	Steel
