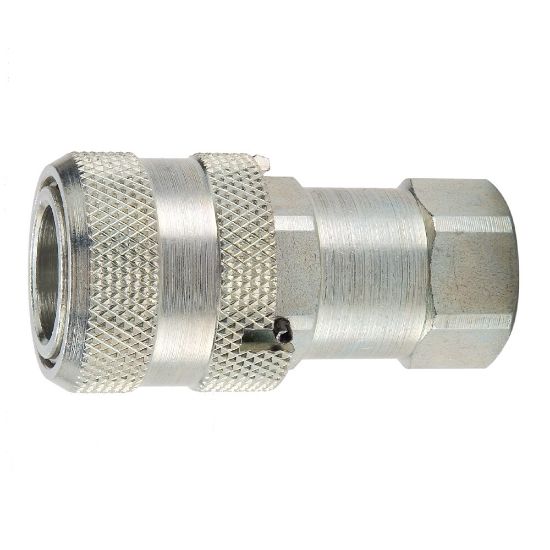

TC-371 - High Pressure Application Quick Couplings - TC Series

Name: TC-371 - High Pressure Application Quick Couplings - TC Series
SKU: TC-371
Price: 67.18 USD
Availability: InStock

Parker's high pressure quick couplers and nipples are ideal for use with hydraulic equipment where high pressure fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:

7 in stock

Olivette, MO	5
Joplin, MO	2

Partner Available:

113 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU TC-371

$67.18/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Type	Female NPSF	Maximum Flow Rate	6 Gal/min
Division	Quick Coupling Division	Valve Type	Poppet
Maximum Operating Temperature	400 °F	Seal Material	Fluorocarbon
Body Size	3/8 inch	Plating Type	Zinc with Clear Trivalent Chromate
Product Type	Manual Connect	Hex Size	0.94
Minimum Operating Temperature	-15 °F	Application	High Pressure Hydraulics
Dimensional Weight	0.05341726618705036 lb	Connection Thread Size	3/8"-18 inch
Maximum Operating Pressure	10000 psi	Body Material	Steel
