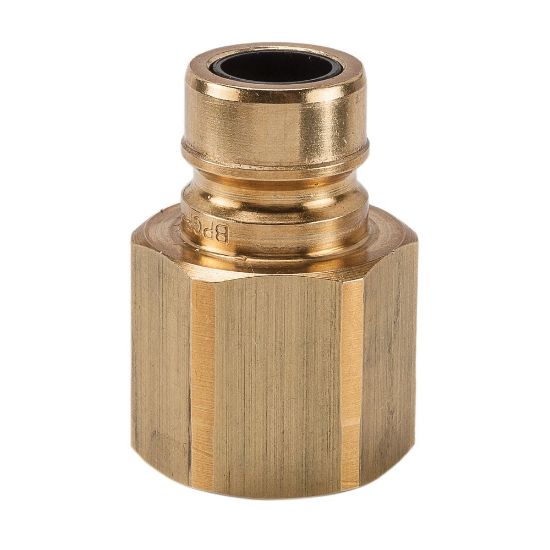

HP-1002-16FP - High Flow, Valved, Hydraulic Quick Couplings - HP Series

Parker's high pressure quick couplers and nipples are ideal for use in hydraulic applications where fluid lines require fast and easy connection and disconnection.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	8 in stock

SKU HP-1002-16FP

$394.12/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Body Size	1
Coupling Half	Male Nipple	Connection Thread Size (inch)	1 - 11 1/2
Connection Type	Female NPSF	Valve Type	Poppet
Division	Quick Coupling Division	Body Material	Steel
Product Type	Manual Connect inch	Maximum Operating Temperature	250 °F
Seal Material	Nitrile	Minimum Operating Temperature	-40 °F
Hex Size	1.62 inch	Plating Type	Zinc with clear trivalent chromate
Maximum Operating Pressure	5000 psi	Flow Rate	50 Gal/min
Application	Hydraulic, High Pressure
