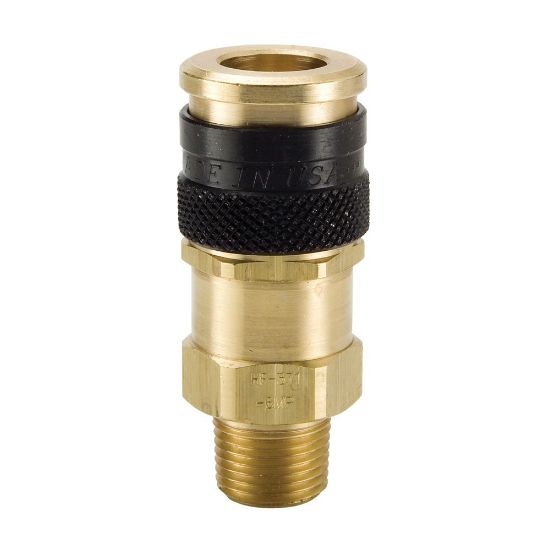

HF-251-4MP - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers

Name: HF-251-4MP - High Flow, Push to Connect, Air Tool Quick Couplings (pneumatic) Industrial Interchange - HF Series Couplers
SKU: HF-251-4MP
Price: 16.94 USD
Availability: InStock

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Manufacturer: Parker

Availability:

7 in stock

Olivette, MO

Partner Available:

46 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU HF-251-4MP

$16.94/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	NPTF
Body Size (inch)	1/4	Hose I.D. (inch)	na
Thread Style	Male	Connection Thread Size (inch)	1/4 - 18
Body Material	BRASS	Body Material	Brass
Maximum Operating Pressure	300	Maximum Operating Temperature	250
Valve Type	Tubular	Division	Quick Coupling Division
Seal Material	Nitrile	Lock Type	Locking balls
Plating Type	na	Media	Low pressure fluids and compressed air
Coupling Half	Coupler	Minimum Operating Temperature	-40
Application	Pneumatic	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Sleeve Type	Push to connect
