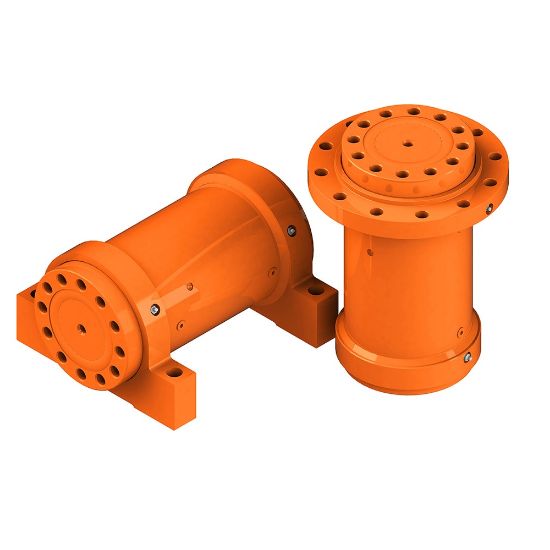

34742 - Helical Hydraulic Rotary Actuator - Helac L30-Series

The Helac L30 Series is a heavy duty helical hydraulic rotary actuator that is suitable for harsh environments. Designed for applications that require high bearing capacity, the L30 Series features foot or flange output with 180° or 360° rotation.

Manufacturer: Parker

Availability:	Backordered
Partner Available:	Backordered

SKU 34742

$97.85/each

Products specifications

Attribute name	Attribute value
UOM	EA	Model Number	L30-65-M-FF-180-S2-C-H
Weight	72.6	Maximum Operating Pressure	207
Division	Cylinder Division	Axial Load Capacity	3629
Brand	Helac	Torque Rating	7.345
Rotation Angle	180	Product Series	L30 Series
Mounting Type	Flange	Application	Hydraulic
Operating Pressure	207	Technology	Hydraulics
Displacement	1868.1	Length	Varies per Model. See Catalog for Specifications.
Holding Torque	18306	Product Type	Helical
Maximum Output Torque	207	Width	Varies See Catalog for Dimensions
Division	Cylinder Division	Drive Torque	7345
Height	Varies per Model. See Catalog for Specifications.	Industry	Hydraulic
Radial Load Capacity	4990
