*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

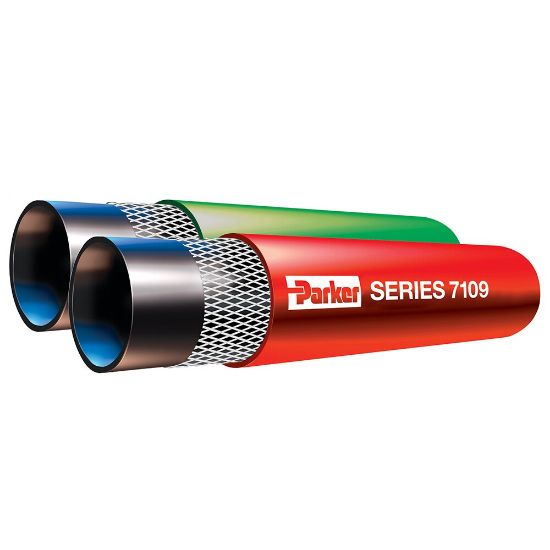

7109KABC-150 - Grade T Twin Line Welding Hose Factory Assemblies, Series 7109

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 118 days
Partner Available:	Backordered

SKU 7109KABC-150

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	3/16
Standard Package Quantity	10	Length (ft)	12-1/2
Spring Guard	n/a	Weight (lbs/ea)	2
Connection Style	A and B	Outside Diameter	n/a
Package Type	Carton	Specifications Met	ARPM IP-7
Application	Welding	Hose Reinforcement Material	Mutiple Plies of Textile
Fitting Material	Brass	Cover Color	Green (Oxygen)
Maximum Operating Pressure	200 psi	Weight	0.90 kg/ea
Inside Diameter	3/16 inch	Hose Inner Tube Material	Chloroprene
Division	Hose Products Division	Maximum Operating Temperature	200 °F
Minimum Operating Temperature	-40 °C	Cover Material	Chloroprene Rubber (CR)
Minimum Bend Radius	n/a	Media	Welding Gases
Length	3.81 m

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
