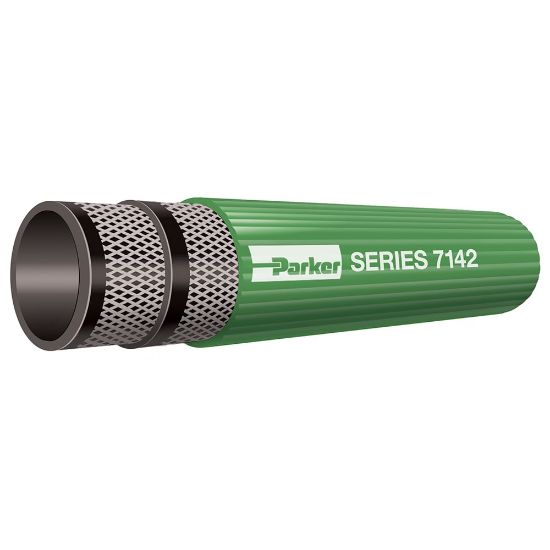

7142-75200 - Grade T Single Line Oxygen Welding Hose, Series 7142

Note: This product is no longer available - please contact us for further assistance

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 49 days
Partner Available:	Backordered

SKU 7142-75200

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Maximum Working Pressure (psi)	200	Cover Color	Green
Inside Diameter	19.1 mm	Outside Diameter	1.160 inch
Maximum Operating Pressure	13.8 bar	Weight	0.20 kg/m
Package Type	Reel	Maximum Operating Temperature	93 °C
Hose Inner Tube Material	Chloroprene Rubber (CR)	Compatible Fitting	HY Series
Length per Package	400 ft	Division	Hose Products Division
Cover Material	Chloroprene Rubber (CR)	Media	Industrial Gases (Oxygen)
Tube Material	Chloroprene Rubber (CR)	Application	Welding
Hose Reinforcement Material	4 Plies of Textile	Minimum Bend Radius	6 inch
Specifications Met	ARPM IP-7	Minimum Operating Temperature	-40 °C
