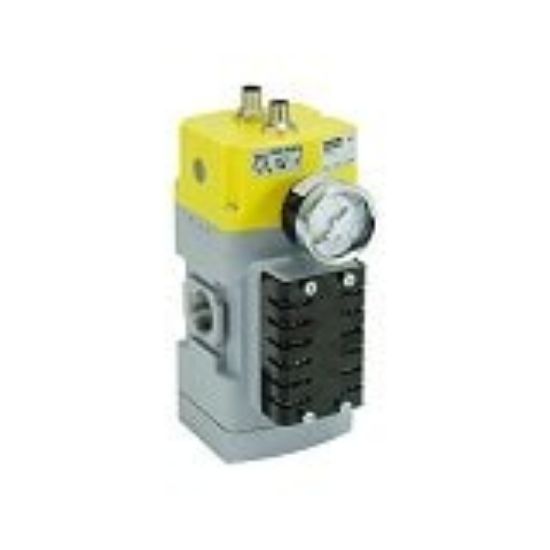

P33DB96ABEG - Global FRL Valves (Safety Exhaust)

The P33 Safety Exhaust valve is designed to safely remove trapped air from machinery bringing machinery to a safe state. This product is externally monitored and designed for two channel safety architecture up to Category 4, Performance level e.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU P33DB96ABEG

$1,223.33/each

Products specifications

Attribute name	Attribute value
UOM	EA	Pressure Gauge	[EG] - Standard Dial Gauge
Options	Black Grill	Solenoid Connection	[A] - M12 pins: 2 & 4 with common 3
Port Size	[6] - 3/4 inch	Sensor Connection	[B] - M12 pins: 1&2, 5&4, common 3
Port Type	[B9] - NPTF	Product Style	[P33D] - Without Soft Start
Body Material	Cast Aluminum	Weight	1.9
Industry	General Industry	Mounting Type	Inline / Stand-Alone or Modular Mount (on P32/P33 FRL)
Flow Rate	≤ 265	Application	Pneumatic Safety Systems (up to Category 4 / performance level ‘e’)
Specifications Met	Category 4, Performance Level e per EN ISO 13849-1 (pending)	Brand	Parker
Operating Temperature	4 to 50	Maximum Operating Pressure	150
Port Type	NPT	Function	3/2 Normally-Closed
Product Type	Safety Exhaust Valve	Port Size	3/4
Length	10.93	Input Voltage	24
Product Style	Electro-Pneumatic (Solenoid Actuated)	Minimum Operating Pressure	10
Division	Pneumatic Division	Width	8
Height	17.87	Electrical Connection	M12 (x2)
Seal Material	Nitrile Butadiene Rubber (NBR)	Technology	Pneumatics
